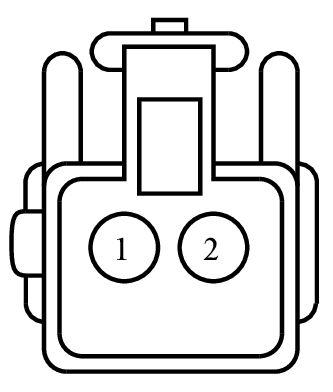

Connector End View (C2112) - KEY IN IGNITION SWITCH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2112 |
KEY IN IGNITION SWITCH |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 94BG-14474-YA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SPB04 (RD) |
20 |
FUSE - 4 OR CIRCUIT BREAKER |
94BG-14474-YA |
| 2 |
CDC30 (BU-GY) |
22 |
SWITCH - IGNITION # KEY IN |
94BG-14474-YA |
