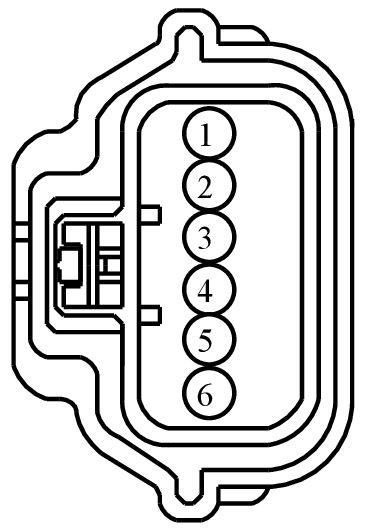

Connector End View (C2040) - ACCELERATOR PEDAL POSITION (APP) SENSOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2040 | ACCELERATOR PEDAL POSITION (APP) SENSOR | 12A581 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7S4T-14474-BA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LE136 (GN-OG) | 22 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) | 7S4T-14474-BA | ||||
| 2 | VE701 (YE-OG) | 22 | SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) | 7S4T-14474-BA | ||||
| 3 | RE136 (VT-GN) | 22 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) | 7S4T-14474-BA | ||||
| 4 | RE137 (YE-GN) | 22 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) | 7S4T-14474-BA | ||||
| 5 | VE702 (BU-WH) | 22 | SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) | 7S4T-14474-BA | ||||
| 6 | LE137 (BU-GY) | 22 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) | 7S4T-14474-BA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1338
Service Part Number:
9U2Z-14S411-BB
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Module - Occupant Classification
- Sensor - Acceleration Pedal Position
- Sensor - Transmission Range
- Switch - Door Ajar / Interior Lamp
