Connector End View (C1915E) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1915E POWERTRAIN CONTROL MODULE (PCM) 12C508 part# N/A Not Available

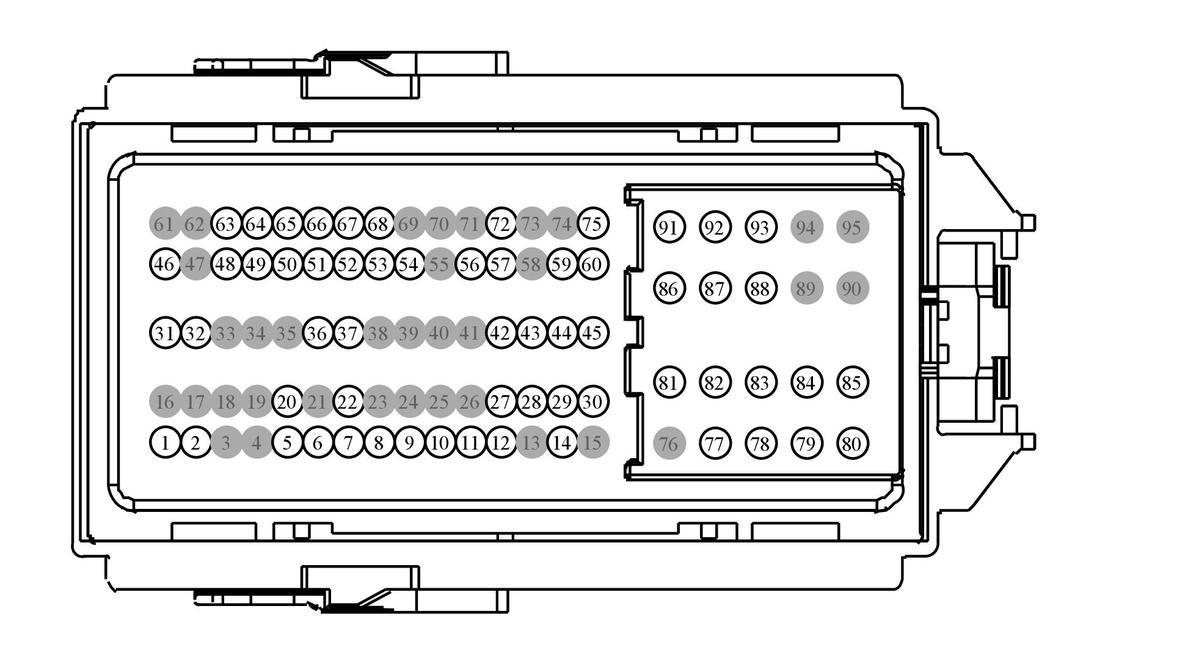

GFDWR26780Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-BB Not Available
BU5T-14474-AB DU2Z-14474-CA 0.64
7C3T-14474-CA DU2Z-14474-DA 1.5
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE421 (VT) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1) BU5T-14474-BB
2 CET18 (GY-YE) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 1 (SS1) BU5T-14474-AB
3 * * Not Used N/A
4 * * Not Used N/A
5 LE238 (GY) 20 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR + BU5T-14474-AB
6 LE143 (GN-BN) 20 CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 + BU5T-14474-AB
7 LE134 (OG) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) BU5T-14474-AB
8 LE135 (GY-VT) 20 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) + BU5T-14474-AB
9 CMC24 (GY) 20 SWITCH - OIL PRESSURE BU5T-14474-AB
10 VET32 (VT) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) BU5T-14474-AB
11 VE711 (YE-VT) 20 SENSOR - CRANKSHAFT POSITION (CKPP) + BU5T-14474-AB
12 RET04 (YE-OG) 20 CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) BU5T-14474-AB
13 * * Not Used N/A
14 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) BU5T-14474-BB
15 * * Not Used N/A
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 * * Not Used N/A
20 RE138 (BU-GN) 20 CTRL MOD. - POWERTRAIN # CYLINDER HEAD TEMPERATURE SENSOR BU5T-14474-AB
21 * * Not Used N/A
22 LE111 (VT-GN) 20 CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) BU5T-14474-AB
23 * * Not Used N/A
24 * * Not Used N/A
25 * * Not Used N/A
26 * * Not Used N/A
27 DET133 (YE) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) BU5T-14474-AB
28 VE706 (BN-BU) 20 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) BU5T-14474-AB
29 CE422 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) BU5T-14474-BB
30 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] BU5T-14474-AB
31 RE134 (OG-BU) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) BU5T-14474-AB
32 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) BU5T-14474-AB
33 * * Not Used N/A
34 * * Not Used N/A
35 * * Not Used N/A
36 VE712 (BU-GY) 20 SENSOR - CYLINDER HEAD TEMPERATURE (CHT) BU5T-14474-AB
37 VE727 (GN-OG) 20 SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) BU5T-14474-AB
38 * * Not Used N/A
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 CEC03 (WH-VT) 20 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) BU5T-14474-AB
43 CE306 (GN-VT) 20 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) BU5T-14474-AB
44 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] BU5T-14474-AB
45 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] BU5T-14474-AB
46 VE716 (YE) 20 SENSOR - ENGINE COOLANT TEMPERATURE (ECT) BU5T-14474-AB
47 * * Not Used N/A
48 LE452 (GN) 20 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11) BU5T-14474-AB
49 LE448 (GY-BU) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) BU5T-14474-AB
50 VE802 (BN-BU) 20 SENSOR - KNOCK 2ND BANK 1ST (KS2N) [KSL2-] BU5T-14474-AB
51 RE324 (BN-GN) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-] BU5T-14474-AB
52 VE819 (VT-GN) 20 SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) BU5T-14474-AB
53 RE135 (GN-OG) 20 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - BU5T-14474-AB
54 VE707 (GN-VT) 20 SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) BU5T-14474-AB
55 * * Not Used N/A
56 RE238 (BU-BN) 20 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR - BU5T-14474-AB
57 CE304 (YE-BU) 20 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) BU5T-14474-AB
58 * * Not Used N/A
59 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] BU5T-14474-AB
60 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] BU5T-14474-AB
61 * * Not Used N/A
62 * * Not Used N/A
63 LE451 (BN-YE) 20 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) BU5T-14474-AB
64 VE826 (BN-VT) 20 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) BU5T-14474-AB
65 VE801 (VT-OG) 20 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] BU5T-14474-AB
66 RE323 (WH-OG) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - BU5T-14474-AB
67 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) BU5T-14474-AB
68 VE818 (GY) 20 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) BU5T-14474-AB
69 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
72 CE305 (BU-OG) 20 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) BU5T-14474-AB
73 * * Not Used N/A
74 * * Not Used N/A
75 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] BU5T-14474-AB
76 * * Not Used N/A
77 RE256 (GY-BU) 20 CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) - 7C3T-14474-CA
78 CE256 (BU-OG) 20 CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) + 7C3T-14474-CA
79 VYT11 (VT-GY) 20 CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT) 7C3T-14474-CA
80 CET25 (WH-BN) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) 7C3T-14474-CA
81 VYT12 (YE-GN) 20 PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI) 7C3T-14474-CA
82 CE207 (VT-GY) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + 7C3T-14474-DA
83 CE206 (GY-YE) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + 7C3T-14474-DA
84 CE205 (GN-BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + 7C3T-14474-DA
85 CE208 (YE-OG) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + 7C3T-14474-DA
86 CE412 (VT-YE) 20 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) 7C3T-14474-CA
87 RE205 (YE-BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - 7C3T-14474-DA
88 RE206 (BU-OG) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - 7C3T-14474-DA
89 * * Not Used N/A
90 * * Not Used N/A
91 CE246 (GN-BU) 20 CTRL MOD. - GLOW PLUG 4 OR ELECTRONIC COLD START 7C3T-14474-CA
92 RE208 (BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - 7C3T-14474-DA
93 RE207 (GN-VT) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - 7C3T-14474-DA
94 * * Not Used N/A
95 * * Not Used N/A
