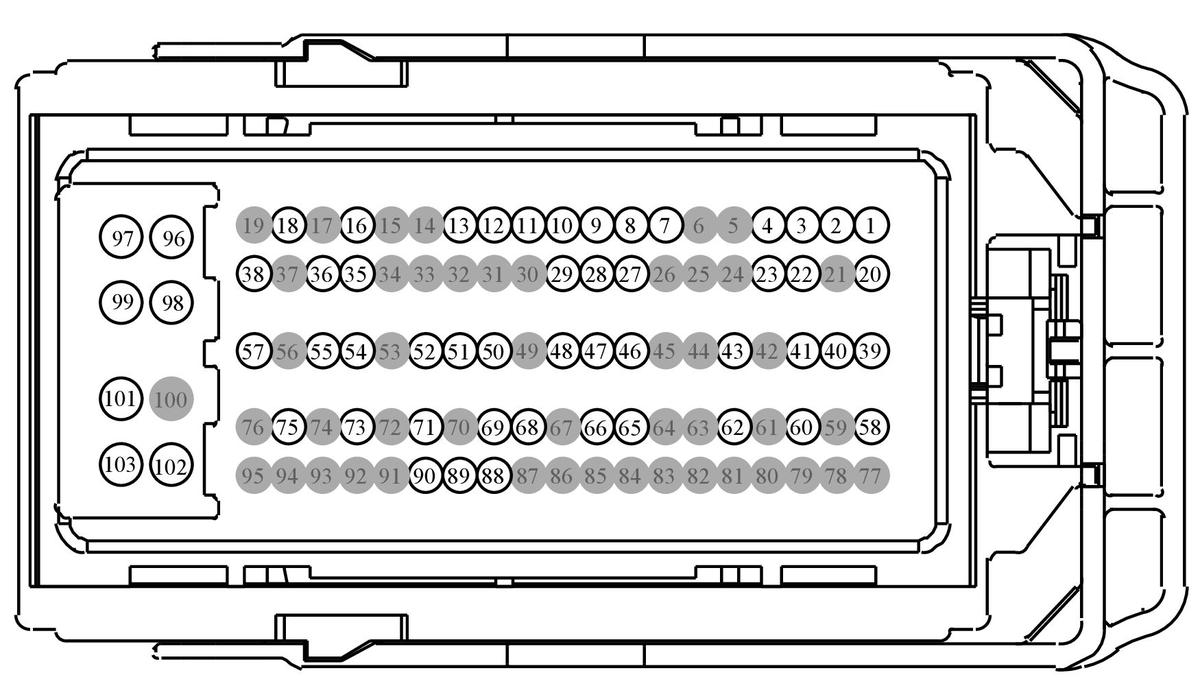

Connector End View (C1915B) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1915B	POWERTRAIN CONTROL MODULE (PCM)	12A581			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-BB	Not Available
BU5T-14474-AB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE233 (WH-OG)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)	BU5T-14474-BB
2	CH302 (WH-BN)	22	CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)	BU5T-14474-AB
3	VE530 (GY-BN)	22	CTRL MOD. - POWERTRAIN # ELECTRIC WATER PUMP	BU5T-14474-AB
4	CEC01 (WH-BU)	20	CTRL MOD. - COOLING FAN CONTROL (FC2)	BU5T-14474-AB
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	RET42 (WH-BN)	22	SWITCH - TRANSMISSION SELECT SHIFT (SNS GND)	BU5T-14474-AB
8	VE807 (YE-VT)	20	SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF)	BU5T-14474-AB
9	RE320 (BU)	20	CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN)	BU5T-14474-AB
10	LE137 (BU-GY)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF)	BU5T-14474-AB
11	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	BU5T-14474-AB
12	LE136 (GN-OG)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF)	BU5T-14474-AB
13	LE230 (BN-BU)	20	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF)	BU5T-14474-AB
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	RE230 (WH-VT)	20	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER	BU5T-14474-AB
17	*	*	Not Used	N/A
18	RH107 (GN-BU)	20	CTRL MOD. - AMBIENT TEMP. SENSOR	BU5T-14474-AB
19	*	*	Not Used	N/A
20	CE114 (GN-BU)	18	CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT)	BU5T-14474-BB
21	*	*	Not Used	N/A
22	CE113 (WH-BN)	18	CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)	BU5T-14474-BB
23	CEC02 (GN-BU)	20	CTRL MOD. - COOLING FAN CONTROL (FC1)	BU5T-14474-AB
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	VE518 (BN-WH)	20	MONITOR - FUEL PUMP (FPM)	BU5T-14474-AB
28	CE436 (VT-OG)	22	CTRL MOD. - WAKE UP PCM	BU5T-14474-AB
29	CE261 (GY-OG)	22	CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES)	BU5T-14474-AB
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	RE137 (YE-GN)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN)	BU5T-14474-AB
36	RE136 (VT-GN)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN)	BU5T-14474-AB
37	*	*	Not Used	N/A
38	RE242 (GN)	22	CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (HEGO_RTN)	BU5T-14474-AB
39	VE225 (YE-OG)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)	BU5T-14474-AB
40	CE420 (GY-VT)	18	CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC)	BU5T-14474-BB
41	VE462 (WH-BN)	22	CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE	BU5T-14474-AB
42	*	*	Not Used	N/A
43	CDC12 (YE)	22	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)	BU5T-14474-AB
44	*	*	Not Used	N/A
45	*	*	Not Used	N/A
46	VCF34 (WH)	22	CTRL MOD. - ALL WHEEL DRIVE # MONITOR (AWDM)	BU5T-14474-AB
47	CDC35 (BU-WH)	22	SWITCH - IGNITION # START	BU5T-14474-AB
48	CBB56 (BU-GN)	22	FUSE - 56 OR CIRCUIT BREAKER	BU5T-14474-AB
49	*	*	Not Used	N/A
50	VE181 (WH-GN)	20	CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1	BU5T-14474-AB
51	VH407 (YE-GN)	20	SENSOR - AMBIENT TEMP.	BU5T-14474-AB
52	VH433 (VT-OG)	20	TRANSDUCER - A/C PRESSURE (ACPT) +	BU5T-14474-AB
53	*	*	Not Used	N/A
54	VE702 (BU-WH)	22	SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)	BU5T-14474-AB
55	VE701 (YE-OG)	22	SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)	BU5T-14474-AB
56	*	*	Not Used	N/A
57	VE731 (YE-GN)	20	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)	BU5T-14474-AB
58	CE237 (BN-WH)	22	CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM)	BU5T-14474-AB
59	*	*	Not Used	N/A
60	VCF35 (GN)	22	CTRL MOD. - POWERTRAIN # ALL WHEEL DRIVE COMMAND (AWDC)	BU5T-14474-AB
61	*	*	Not Used	N/A
62	CDC54 (WH-GN)	22	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)	BU5T-14474-AB
63	*	*	Not Used	N/A
64	*	*	Not Used	N/A
65	CES09 (VT-OG)	22	SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +	BU5T-14474-AB
66	CCB08 (VT-WH)	22	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN	BU5T-14474-AB
67	*	*	Not Used	N/A
68	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	BU5T-14474-AB
69	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	BU5T-14474-AB
70	*	*	Not Used	N/A
71	VE761 (YE-VT)	22	SENSOR - FUEL LOW PRESSURE (FLPS)	BU5T-14474-AB
72	*	*	Not Used	N/A
73	VE922 (VT-GN)	20	TRANSDUCER - FUEL TANK PRESSURE (FTPT)	BU5T-14474-AB
74	*	*	Not Used	N/A
75	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)	BU5T-14474-AB
76	*	*	Not Used	N/A
77	*	*	Not Used	N/A
78	*	*	Not Used	N/A
79	*	*	Not Used	N/A
80	*	*	Not Used	N/A
81	*	*	Not Used	N/A
82	*	*	Not Used	N/A
83	*	*	Not Used	N/A
84	*	*	Not Used	N/A
85	*	*	Not Used	N/A
86	*	*	Not Used	N/A
87	*	*	Not Used	N/A
88	CET42 (GN-VT)	22	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	BU5T-14474-AB
89	CET43 (GY)	22	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	BU5T-14474-AB
90	CET34 (WH-BN)	20	SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS)	BU5T-14474-AB
91	*	*	Not Used	N/A
92	*	*	Not Used	N/A
93	*	*	Not Used	N/A
94	*	*	Not Used	N/A
95	*	*	Not Used	N/A
96	GD122 (BK-YE)	16	GROUND - FENDER FRONT LEFT # 3RD POINT	7C3T-14474-DA
97	GD122 (BK-YE)	16	GROUND - FENDER FRONT LEFT # 3RD POINT	7C3T-14474-DA
98	GD122 (BK-YE)	16	GROUND - FENDER FRONT LEFT # 3RD POINT	7C3T-14474-DA
99	GD122 (BK-YE)	16	GROUND - FENDER FRONT LEFT # 3RD POINT	7C3T-14474-DA
100	*	*	Not Used	N/A
101	CBB20 (GY-OG)	16	FUSE - 20 OR CIRCUIT BREAKER	7C3T-14474-DA
102	CBB20 (GY-OG)	16	FUSE - 20 OR CIRCUIT BREAKER	7C3T-14474-DA
103	CBB20 (GY-OG)	16	FUSE - 20 OR CIRCUIT BREAKER	7C3T-14474-DA
