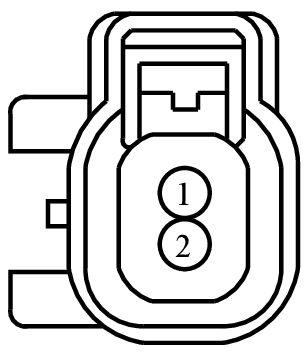

Connector End View (C1745) - CYLINDER HEAD TEMPERATURE (CHT) SENSOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1745 | CYLINDER HEAD TEMPERATURE (CHT) SENSOR | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7C3T-14474-UA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE712 (BU-GY) | 20 | SENSOR - CYLINDER HEAD TEMPERATURE (CHT) | 7C3T-14474-UA | ||||
| 2 | RE138 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # CYLINDER HEAD TEMPERATURE SENSOR | 7C3T-14474-UA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-984
Service Part Number:
3U2Z-14S411-BXAB
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
