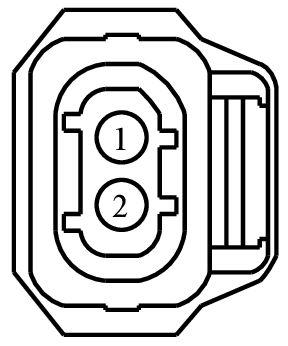

Connector End View (C1673) - FUEL INJECTION PUMP

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1673	FUEL INJECTION PUMP	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-XA\|6C35-14487-DA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE256 (BU-OG)	16	CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) +	1.0L	EU5T-14474-XA\|6C35-14487-DA
2	RE256 (GY-BU)	16	CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) -	1.0L	EU5T-14474-XA\|6C35-14487-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1302

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ARA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Fuel Injector
Pump - Fuel Injection
Solenoid - Fuel Volume Regulator Control
