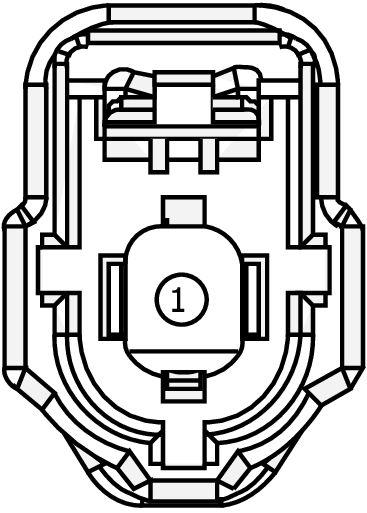

Connector End View (C1657) - ENGINE OIL PRESSURE (EOP) SWITCH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1657 |
ENGINE OIL PRESSURE (EOP) SWITCH |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 98AG-14474-AA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CMC24 (GY) |
20 |
SWITCH - OIL PRESSURE |
98AG-14474-AA |
