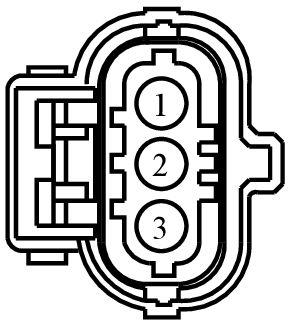

Connector End View (C1654) - CAMSHAFT POSITION 12 (CMP12) SENSOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1654 | CAMSHAFT POSITION 12 (CMP12) SENSOR | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-KA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LE143 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 + | 9U5T-14474-KA | ||||
| 2 | VE707 (YE-VT) | 20 | SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) | 9U5T-14474-KA | ||||
| 3 | RE135 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - | 9U5T-14474-KA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1066
Service Part Number:
AU2Z-14S411-GA
Gauge:
14
Pin material:
Tin (greased)
Cavities:
3
Vehicle Uses:
- Sensor - Fuel Rail Pressure
