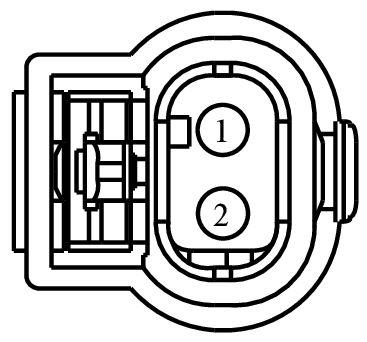

Connector End View (C1649) - VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1649 | VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-ACA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB21 (BN-WH) | 18 | FUSE - 21 OR CIRCUIT BREAKER | 9U5T-14474-ACA | ||||
| 2 | CE422 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) | 9U5T-14474-ACA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1251
Service Part Number:
CU2Z-14S411-DA
Gauge:
18
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Solenoid - Engine Variable Timing
