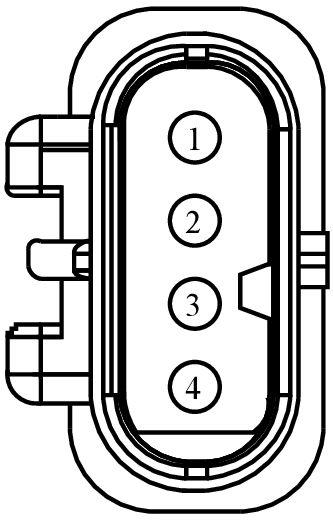

Connector End View (C1632) - HEATED OXYGEN SENSOR (HO2S) #12
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1632 | HEATED OXYGEN SENSOR (HO2S) #12 | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14421-NA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE233 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) | EU5T-14421-NA | ||||
| 2 | CBB21 (BN-WH) | 18 | FUSE - 21 OR CIRCUIT BREAKER | EU5T-14421-NA | ||||
| 3 | RE242 (GN) | 20 | CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (HEGO_RTN) | EU5T-14421-NA | ||||
| 4 | VE731 (YE-GN) | 20 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) | EU5T-14421-NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1381
Service Part Number:
EU2Z-14S411-EA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Sensor - Catalyst Monitor
