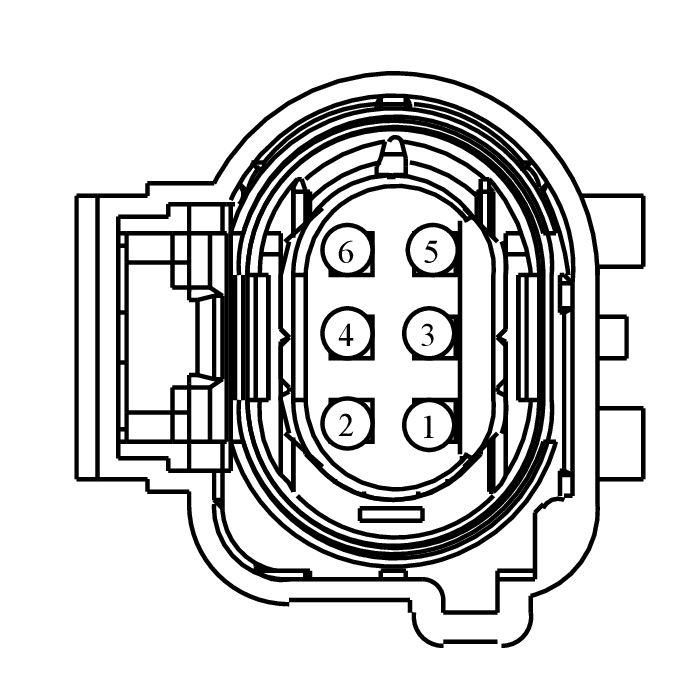

Connector End View (C1631) - UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1631 | UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11 | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 6G9T-14474-DGA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LE451 (BN-YE) | 20 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) | 6G9T-14474-DGA | ||||
| 2 | LE448 (GY-BU) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) | 6G9T-14474-DGA | ||||
| 3 | CE235 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) | 6G9T-14474-DGA | ||||
| 4 | CBB21 (BN-WH) | 18 | FUSE - 21 OR CIRCUIT BREAKER | 6G9T-14474-DGA | ||||
| 5 | LE452 (GN) | 20 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11) | 6G9T-14474-DGA | ||||
| 6 | VE826 (BN-VT) | 20 | SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) | 6G9T-14474-DGA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1549
Service Part Number:
JU2Z-14S411-AHA
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Sensor - O2 (HEGO/ EGO)
