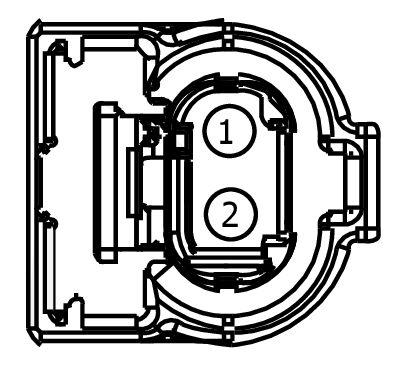

Connector End View (C1465) - FRONT IMPACT SENSOR LH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1465 | FRONT IMPACT SENSOR LH | 14290 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-DAB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VR214 (WH-BU) | 20 | SENSOR - IMPACT FRONT 2ND | EU5T-14474-DAB | ||||
| 2 | RR130 (GN-BU) | 20 | CTRL MOD. - SENSOR IMPACT FRONT 2ND | EU5T-14474-DAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1469
Service Part Number:
GU2Z-14S411-KA
Gauge:
18
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Sensor - Side Impact
- Sensor - Transfer Case Temperature
- Sensor - Transmission Fluid Temperature
- Solenoid - Variable Oil Pump Control
