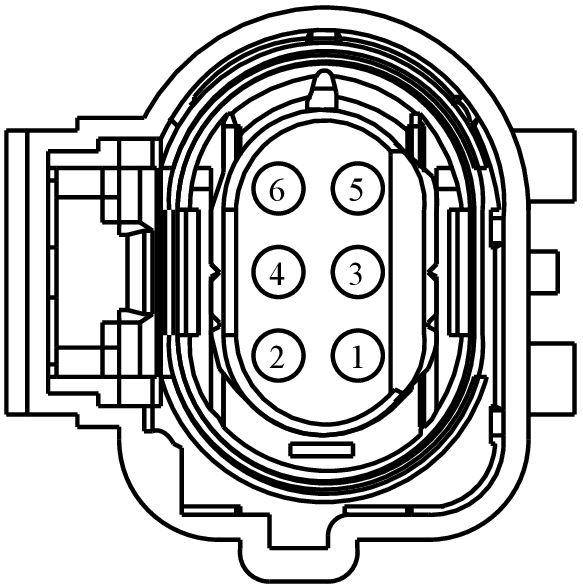

Connector End View (C1449) - ELECTRONIC THROTTLE CONTROL (ETC)
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1449 | ELECTRONIC THROTTLE CONTROL (ETC) | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 6G9T-14474-DGA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LE134 (YE) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | 6G9T-14474-DGA | ||||
| 2 | VE818 (BN) | 20 | SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) | 6G9T-14474-DGA | ||||
| 3 | RE134 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | 6G9T-14474-DGA | ||||
| 4 | CE426 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) | 6G9T-14474-DGA | ||||
| 5 | VE819 (GN-VT) | 20 | SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) | 6G9T-14474-DGA | ||||
| 6 | CE412 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) | 6G9T-14474-DGA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1389
Service Part Number:
EU2Z-14S411-FA
Gauge:
18
Pin material:
Tin (greased)
Cavities:
6
Vehicle Uses:
- Control - Electronic Throttle
- Sensor - O2 (HEGO/ EGO)
