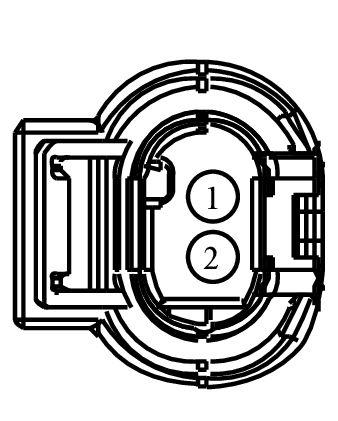

Connector End View (C1369) - VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1369 |
VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 4M5T-14474-RFA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBB21 (BN-WH) |
18 |
FUSE - 21 OR CIRCUIT BREAKER |
4M5T-14474-RFA |
| 2 |
CE421 (VT) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1) |
4M5T-14474-RFA |
