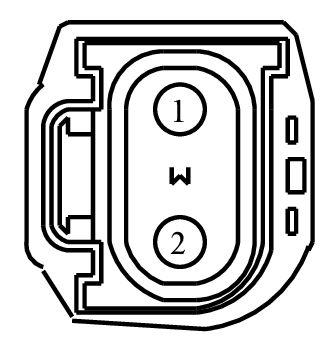

Connector End View (C1319B) - COOLING FAN MOTOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1319B |
COOLING FAN MOTOR |
14290 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 96FG-14474-YAA |
Not Available |
| 93BG-14474-YAA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CEC07 (BN) |
10 |
RELAY - ENGINE COOLING FAN HIGH SPEED |
93BG-14474-YAA |
| 2 |
CEC08 (GN-BU) |
12 |
RELAY - ENGINE COOLING FAN LOW SPEED |
96FG-14474-YAA |
