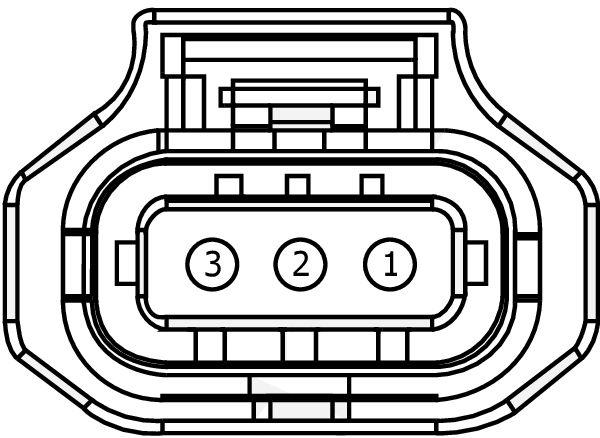

Connector End View (C1303) - FUEL RAIL PRESSURE (FRP) SENSOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1303 |
FUEL RAIL PRESSURE (FRP) SENSOR |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| EU5T-14474-SB |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
LE135 (GY-VT) |
20 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) + |
EU5T-14474-SB |
| 2 |
VE727 (YE-VT) |
20 |
SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) |
EU5T-14474-SB |
| 3 |
RE138 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # CYLINDER HEAD TEMPERATURE SENSOR |
EU5T-14474-SB |
