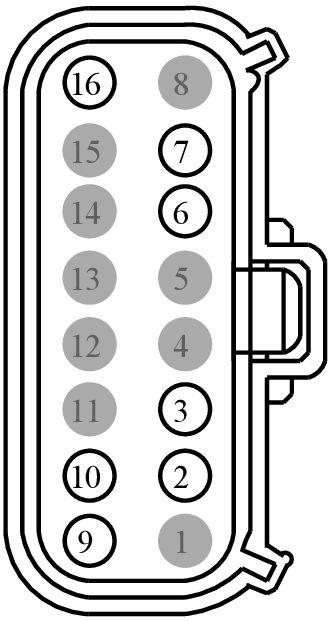

Connector End View (C1284) - HEADLAMP ASSEMBLY LH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1284 | HEADLAMP ASSEMBLY LH | 12A581 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA|7C3T-14474-DA | Not Available | |
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | CLF02 (GY-BN) | 20 | CTRL MOD. - BEAM HIGH LEFT | BU5T-14474-UA | ||||
| 3 | CLF61 (GY-BU) | 20 | CTRL MOD. - DAYTIME RUNNING LIGHT LEFT | BU5T-14474-UA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | CLF04 (BN-BU) | 20 | CTRL MOD. - BEAM LOW LEFT | BU5T-14474-UA|7C3T-14474-DA | ||||
| 7 | CLS06 (GN-OG) | 20 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | BU5T-14474-UA | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | GD188 (BK-YE) | 20 | GROUND - SHOCK TOWER LEFT BRACKET #2 | BU5T-14474-UA | ||||
| 10 | GD188 (BK-YE) | 20 | GROUND - SHOCK TOWER LEFT BRACKET #2 | BU5T-14474-UA | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | GD188 (BK-YE) | 20 | GROUND - SHOCK TOWER LEFT BRACKET #2 | BU5T-14474-UA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1279
Service Part Number:
CU2Z-14S411-ADA
Gauge:
16
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Lamp - Headlamp - High/Low Beam
- Mating Connector WPT-1404
- Module - Heated Seat (driver)
- Module - Transfer Case Shift Control
