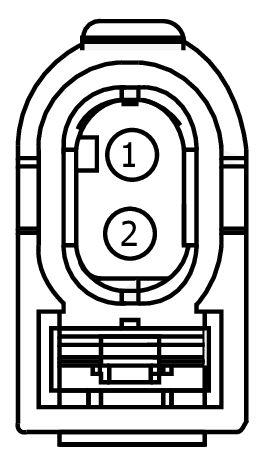

Connector End View (C1143) - FUEL INJECTOR 3
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1143 |
FUEL INJECTOR 3 |
9F666 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 6W8T-14474-PA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CE207 (VT-GY) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + |
6W8T-14474-PA |
| 2 |
RE207 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - |
6W8T-14474-PA |
