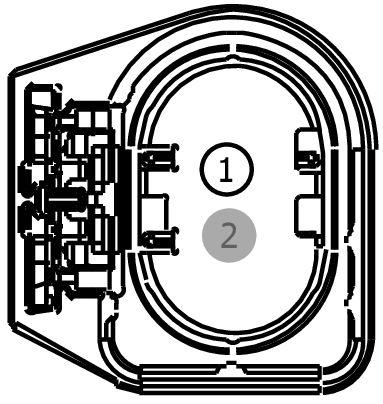

Connector End View (C1104B) - GENERATOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1104B |
GENERATOR |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 3M5T-14474-HGA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VE181 (WH-GN) |
18 |
CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 |
3M5T-14474-HGA |
| 2 |
* |
* |
Not Used |
N/A |
