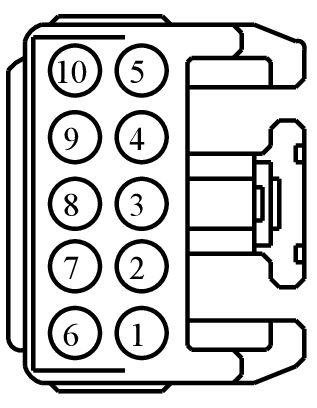

Connector End View (C921) - ROOF OPENING PANEL MODULE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C921 | ROOF OPENING PANEL MODULE | 14335 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-ABB | DU2Z-14474-DA | 1.5 |
| 97BG-14474-AAB | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD345 (BK-BU) | 16 | GROUND - PILLAR B RIGHT | 97BG-14474-ABB | ||||
| 2 | CPR39 (VT-WH) | 22 | MOTOR/SMART - MOON/SUN ROOF SWITCH COMMON | WITHOUT GLOBAL OPEN/CLOSE | 97BG-14474-ABB | |||
| 3 | CPR40 (YE-OG) | 22 | SWITCH - MOON/SUN ROOF CLOSE | GLOBAL OPEN/CLOSE | 97BG-14474-AAB | |||
| 3 | CBP06 (WH-BU) | 22 | FUSE - 6 OR CIRCUIT BREAKER | WITHOUT GLOBAL OPEN/CLOSE | 97BG-14474-AAB | |||
| 4 | VMC05 (VT-OG) | 22 | CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT) | GLOBAL OPEN/CLOSE | 97BG-14474-AAB | |||
| 5 | CPR39 (VT-WH) | 22 | MOTOR/SMART - MOON/SUN ROOF SWITCH COMMON | GLOBAL OPEN/CLOSE | 97BG-14474-AAB | |||
| 5 | CPR31 (VT-GN) | 22 | SWITCH - MOON/SUN ROOF OPEN | WITHOUT GLOBAL OPEN/CLOSE | 97BG-14474-ABB | |||
| 6 | SBB08 (BU-RD) | 16 | FUSE - 8 OR CIRCUIT BREAKER | 97BG-14474-ABB | ||||
| 7 | CBP06 (WH-BU) | 22 | FUSE - 6 OR CIRCUIT BREAKER | GLOBAL OPEN/CLOSE | 97BG-14474-AAB | |||
| 8 | CPR31 (VT-GN) | 22 | SWITCH - MOON/SUN ROOF OPEN | GLOBAL OPEN/CLOSE | 97BG-14474-AAB | |||
| 9 | CPW01 (BU-GY) | 22 | CTRL MOD. - MOON/SUN ROOF # GLOBAL OPEN/CLOSE | GLOBAL OPEN/CLOSE | 97BG-14474-AAB | |||
| 10 | CPR40 (YE-OG) | 22 | SWITCH - MOON/SUN ROOF CLOSE | WITHOUT GLOBAL OPEN/CLOSE | 97BG-14474-AAB | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1037
Service Part Number:
1U2Z-14S411-BLB
Gauge:
14
Pin material:
Silver
Cavities:
10
Vehicle Uses:
- Inverter - DC to AC
- Module - Anti-theft
- Module - Heated Seat
- Module - Power Moonroof
- Radio - Amplifier
- Solenoid - Brake Shift Park Interlock
- Switch - Gear Shift Select/Neutral Safety
- Switch - Headlamp
- Switch - Heated Seat
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Overdrive Cancel
- Switch - Turn Signal
- Switch - Windshield Wiper / Washer
