Connector End View (C913) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C913 | INLINE | 14A00514335 | See Below | |||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7BG-14421-AAB | Not Available | |
| 97BG-14421-ABB | Not Available | |
| 7BG-14474-AAB | DU2Z-14474-DA | 1.5 |
| 97BG-14474-ABB | DU2Z-14474-DA | 1.5 |

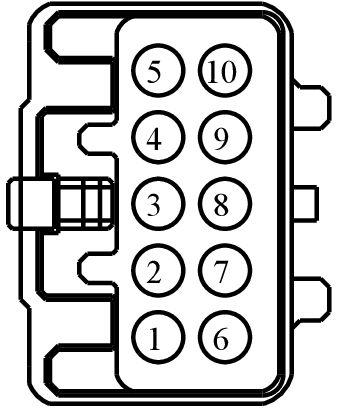

MALE
Harness
14A005
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBP09 (VT-GY) | 20 | roof opening | 97BG-14421-AAB | ||
| 2 | CBP09 (VT-GY) | 22 | without roof opening | 97BG-14421-AAB | ||
| 2 | CR195 (VT-GY) | 22 | (PAD) Indicator | 97BG-14421-AAB | ||
| 3 | CBB15 (BN-BU) | 22 | 97BG-14421-AAB | |||
| 4 | VDN02 (GN-OG) | 22 | anti-theft | 97BG-14421-AAB | ||
| 5 | SBP12 (GN-RD) | 22 | anti-theft | 97BG-14421-AAB | ||
| 6 | CBP06 (WH-BU) | 22 | 97BG-14421-AAB | |||
| 7 | SBB08 (BU-RD) | 16 | roof opening | 97BG-14421-ABB | ||
| 8 | CR189 (BU-OG) | 22 | 97BG-14421-AAB | |||
| 9 | CR190 (GY-BN) | 22 | 97BG-14421-AAB | |||
| 10 | GD345 (BK-BU) | 18 | 97BG-14421-ABB | |||

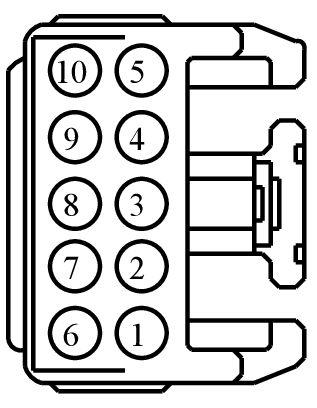

FEMALE
Harness
14335
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBP09 (VT-GY) | 22 | roof opening | 97BG-14474-AAB | ||
| 2 | CBP09 (VT-GY) | 22 | without roof opening | 97BG-14474-AAB | ||
| 2 | CR195 (VT-GY) | 22 | (PAD) Indicator | 97BG-14474-AAB | ||
| 3 | CBB15 (BN-BU) | 22 | automatic wipers | 97BG-14474-AAB | ||
| 4 | VDN02 (GN-OG) | 22 | anti-theft | 97BG-14474-AAB | ||
| 5 | SBP12 (GN-RD) | 22 | anti-theft | 97BG-14474-AAB | ||
| 6 | CBP06 (WH-BU) | 22 | roof opening | 97BG-14474-AAB | ||
| 7 | SBB08 (BU-RD) | 16 | roof opening | 97BG-14474-ABB | ||
| 8 | CR189 (BU-OG) | 22 | 97BG-14474-AAB | |||
| 9 | CR190 (GY-BN) | 22 | 97BG-14474-AAB | |||
| 10 | GD345 (BK-BU) | 18 | electrochromatic mirror | 97BG-14474-ABB | ||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1175
Service Part Number:
BU2Z-14S411-VA
Gauge:
16
Pin material:
Tin (greased)
Cavities:
10
Vehicle Uses:
- Lamp - Park/Turn/Stop
Pigtail Kit Part Number WPT-1037
Service Part Number:
1U2Z-14S411-BLB
Gauge:
14
Pin material:
Silver
Cavities:
10
Vehicle Uses:
- Inverter - DC to AC
- Module - Anti-theft
- Module - Heated Seat
- Module - Power Moonroof
- Radio - Amplifier
- Solenoid - Brake Shift Park Interlock
- Switch - Gear Shift Select/Neutral Safety
- Switch - Headlamp
- Switch - Heated Seat
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Overdrive Cancel
- Switch - Turn Signal
- Switch - Windshield Wiper / Washer
