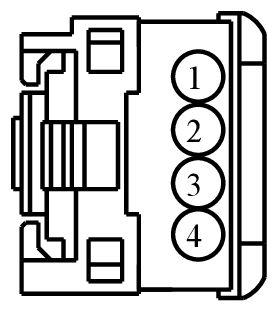

Connector End View (C912) - ROOF OPENING PANEL SWITCH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C912 |
ROOF OPENING PANEL SWITCH |
14335 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| FU5T-14474-LB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBP06 (WH-BU) |
22 |
FUSE - 6 OR CIRCUIT BREAKER |
FU5T-14474-LB |
| 2 |
CPR40 (YE-OG) |
22 |
SWITCH - MOON/SUN ROOF CLOSE |
FU5T-14474-LB |
| 3 |
CPR31 (VT-GN) |
22 |
SWITCH - MOON/SUN ROOF OPEN |
FU5T-14474-LB |
| 4 |
CPR39 (VT-WH) |
22 |
MOTOR/SMART - MOON/SUN ROOF SWITCH COMMON |
FU5T-14474-LB |
