Connector End View (C900) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C900 | INLINE | 14A00514335 | See Below | |||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7BG-14421-AAB | Not Available | |
| 97BG-14421-ACB | Not Available | |
| 97BG-14474-ACB | Not Available | |
| 97BG-14474-ABB | DU2Z-14474-DA | 1.5 |
| 7BG-14474-AAB | DU2Z-14474-DA | 1.5 |

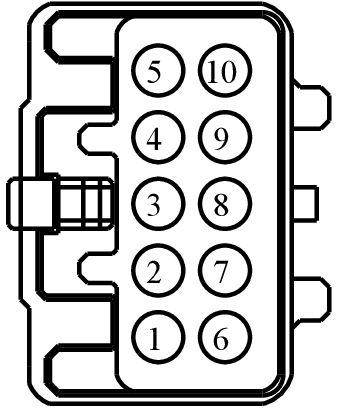

MALE
Harness
14A005
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CPW01 (BU-GY) | 22 | roof opening | 97BG-14421-AAB | ||
| 2 | VMC05 (VT-OG) | 22 | roof opening | 97BG-14421-AAB | ||
| 3 | CLS10 (BU-WH) | 22 | electrochromatic mirror | 97BG-14421-AAB | ||
| 4 | VX107 (YE-GY) | 22 | automatic wipers | 97BG-14421-AAB | ||
| 5 | GD345 (BK-BU) | 14 | 97BG-14421-ACB | |||
| 6 | CLN09 (YE-GN) | 20 | 97BG-14421-AAB | |||
| 7 | VLN33 (GY-VT) | 20 | 97BG-14421-AAB | |||
| 8 | RMM23 (WH-GN) | 22 | navigation | 97BG-14421-AAB | ||
| 9 | VMM23 (BN-VT) | 22 | navigation | 97BG-14421-AAB | ||
| 10 | DMM23 (BK) | 22 | navigation | 97BG-14421-AAB | ||

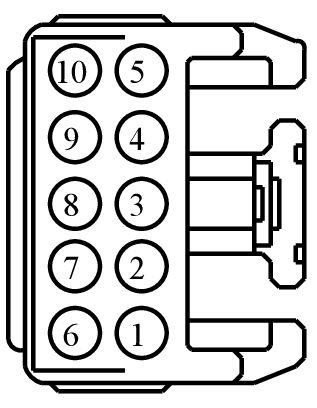

FEMALE
Harness
14335
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CPW01 (BU-GY) | 22 | roof opening | 97BG-14474-AAB | ||
| 2 | VMC05 (VT-OG) | 22 | roof opening | 97BG-14474-AAB | ||
| 3 | CLS10 (BU-WH) | 22 | electrochromatic mirror | 97BG-14474-AAB | ||
| 4 | VX107 (YE-GY) | 22 | automatic wipers | 97BG-14474-AAB | ||
| 5 | GD345 (BK-BU) | 14 | 97BG-14474-ACB | |||
| 6 | CLN09 (YE-GN) | 20 | 97BG-14474-AAB | |||
| 7 | VLN33 (GY-VT) | 22 | 97BG-14474-ABB | |||
| 8 | RMM23 (WH-GN) | 22 | navigation | 97BG-14474-AAB | ||
| 9 | VMM23 (BN-VT) | 22 | navigation | 97BG-14474-AAB | ||
| 10 | DMM23 (BK) | 22 | navigation | 97BG-14474-AAB | ||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1175
Service Part Number:
BU2Z-14S411-VA
Gauge:
16
Pin material:
Tin (greased)
Cavities:
10
Vehicle Uses:
- Lamp - Park/Turn/Stop
Pigtail Kit Part Number WPT-1037
Service Part Number:
1U2Z-14S411-BLB
Gauge:
14
Pin material:
Silver
Cavities:
10
Vehicle Uses:
- Inverter - DC to AC
- Module - Anti-theft
- Module - Heated Seat
- Module - Power Moonroof
- Radio - Amplifier
- Solenoid - Brake Shift Park Interlock
- Switch - Gear Shift Select/Neutral Safety
- Switch - Headlamp
- Switch - Heated Seat
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Overdrive Cancel
- Switch - Turn Signal
- Switch - Windshield Wiper / Washer
