Connector End View (C810) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C810 | INLINE | 1463214A005 | See Below | |||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14421-CA | EU2Z-14421-BA | 0.64 |
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| 2L1T-14421-BA | EU2Z-14421-CA | 1.5 |
| 8U5T-14421-CA | EU2Z-14421-DA | 2.8 |
| 8U5T-14474-CB | DU2Z-14474-CA | 0.64 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| F8VB-14474-BA | EU2Z-14474-AA | 2.8 |
| 7C3T-14474-CA | DU2Z-14474-DA | 1.5 |
| F8VB-14474-AA | EU2Z-14474-AB | 2.8 |
| 8U5T-14421-DA | EU2Z-14421-DA | 2.8 |
| XF2T-14474-BA | EU2Z-14474-AA | 2.8 |

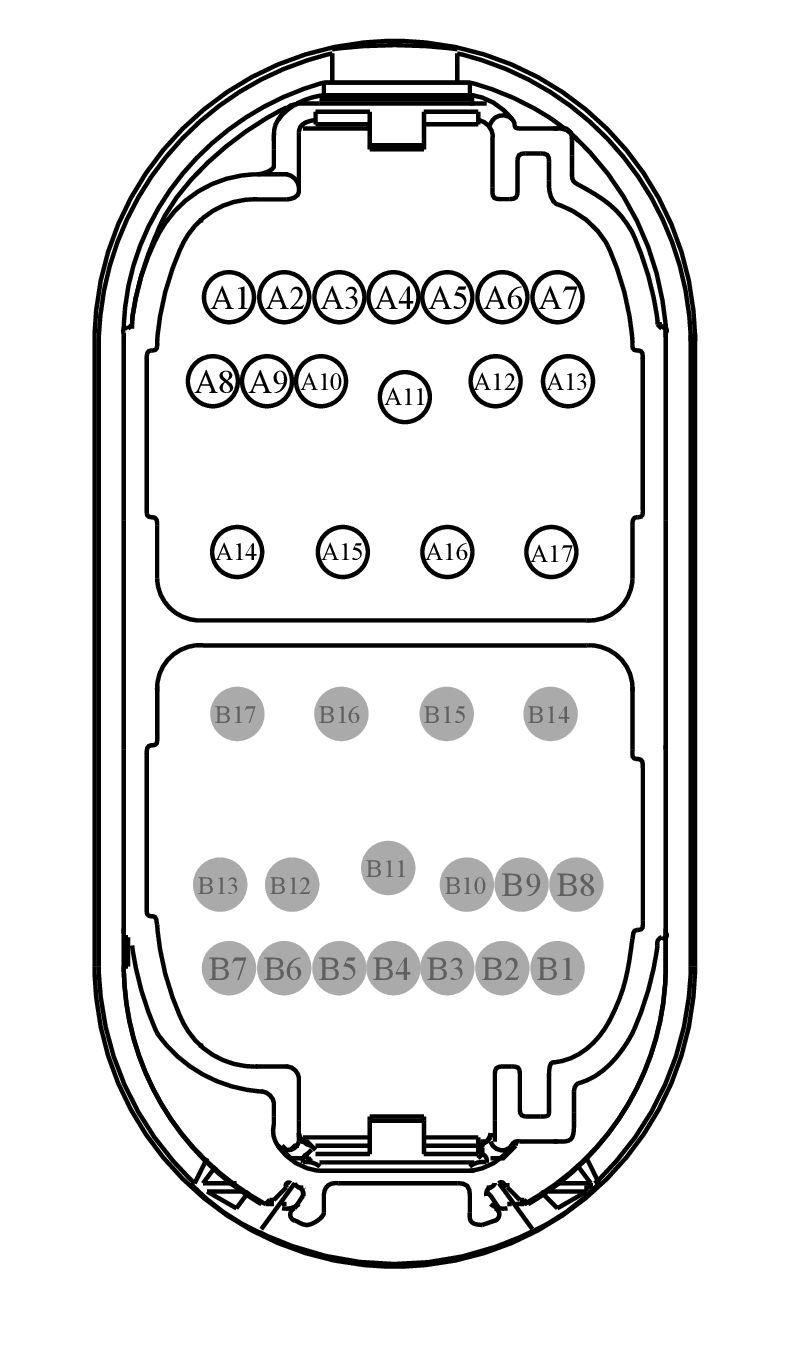

MALE
Harness
14632
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| A1 | VME12 (BN-WH) | 18 | 9U5T-14421-CA | |||
| A2 | RME12 (BN-BU) | 18 | 9U5T-14421-CA | |||
| A3 | CPL11 (GY-BN) | 18 | 9U5T-14421-CA | |||
| A4 | CPL39 (YE) | 22 | 9U5T-14421-BA | |||
| A5 | CPW14 (VT-WH) | 22 | 9U5T-14421-BA | |||
| A6 | CPW18 (GY-VT) | 22 | 9U5T-14421-BA | |||
| A7 | CPW17 (BN-GN) | 22 | 9U5T-14421-BA | |||
| A8 | GD345 (BK-BU) | 18 | 9U5T-14421-CA | |||
| A9 | CPL70 (WH-GN) | 22 | 9U5T-14421-BA | |||
| A10 | CPL69 (YE-VT) | 18 | 9U5T-14421-CA | |||
| A11 | CPL13 (BN-GN) | 18 | 8U5T-14421-DA | |||
| A12 | VPLA6 (BN-VT) | 22 | 2L1T-14421-BA | |||
| A13 | CPL12 (VT-OG) | 20 | 2L1T-14421-BA | |||
| A14 | SBP14 (GN-RD) | 12 | 8U5T-14421-CA | |||
| A16 | CBP10 (YE-OG) | 12 | 8U5T-14421-CA | |||
| A17 | GD345 (BK-BU) | 12 | 8U5T-14421-CA | |||
| B1 | * | * | N/A | |||
| B2 | * | * | N/A | |||
| B3 | * | * | N/A | |||
| B4 | * | * | N/A | |||
| B5 | * | * | N/A | |||
| B6 | * | * | N/A | |||
| B7 | * | * | N/A | |||
| B8 | * | * | N/A | |||
| B9 | * | * | N/A | |||
| B10 | * | * | N/A | |||
| B11 | * | * | N/A | |||
| B12 | * | * | N/A | |||
| B13 | * | * | N/A | |||
| B14 | * | * | N/A | |||
| B15 | * | * | N/A | |||
| B16 | * | * | N/A | |||
| B17 | * | * | N/A | |||

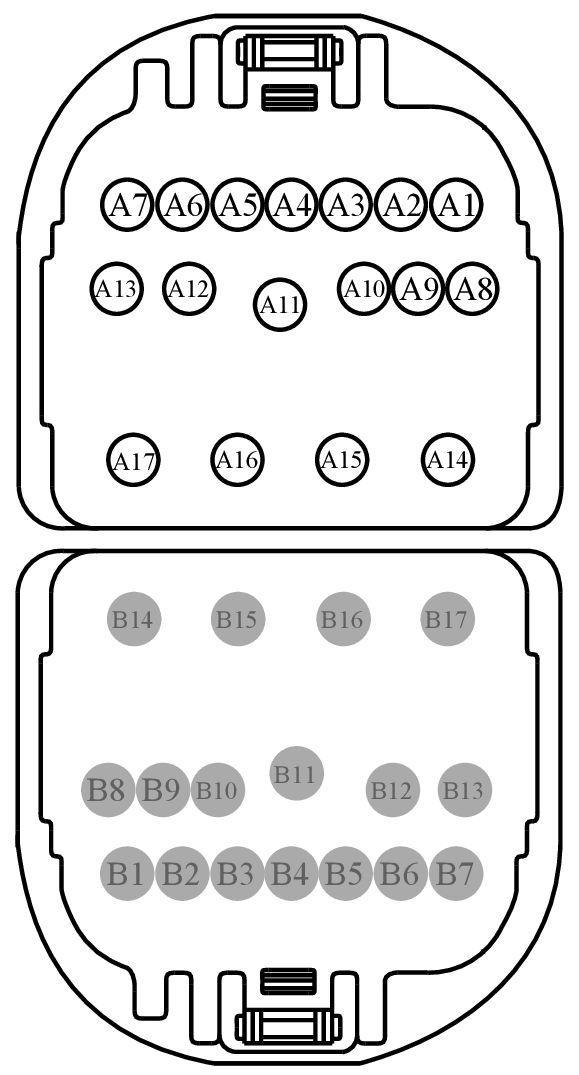

FEMALE
Harness
14A005
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| A1 | VME12 (BN-WH) | 18 | without HARMAN | 8U5T-14474-CB | ||
| A1 | VME12 (GN-WH) | 18 | HARMAN | 8U5T-14474-CB | ||
| A2 | RME12 (BN-BU) | 18 | without HARMAN | 8U5T-14474-CB | ||
| A2 | RME12 (GY-BU) | 18 | HARMAN | 8U5T-14474-CB | ||
| A3 | CPL11 (GY-BN) | 18 | 8U5T-14474-CB | |||
| A4 | CPL39 (YE) | 22 | 8U5T-14474-BB | |||
| A5 | CPW14 (VT-WH) | 22 | 8U5T-14474-BB | |||
| A6 | CPW18 (GY-VT) | 22 | 8U5T-14474-BB | |||
| A7 | CPW17 (BN-GN) | 22 | 8U5T-14474-BB | |||
| A8 | GD345 (BK-BU) | 18 | 8U5T-14474-CB | |||
| A9 | CPL70 (WH-GN) | 22 | 8U5T-14474-BB | |||
| A10 | CPL69 (YE-VT) | 18 | 8U5T-14474-CB | |||
| A11 | CPL13 (BN-GN) | 18 | F8VB-14474-BA | |||
| A12 | VPLA6 (BN-VT) | 22 | 7C3T-14474-CA | |||
| A13 | CPL12 (VT-OG) | 22 | 7C3T-14474-CA | |||
| A14 | SBP14 (BN-RD) | 12 | XF2T-14474-BA | |||
| A15 | CBP06 (WH-BU) | 20 | F8VB-14474-BA | |||
| A16 | CBP10 (YE-OG) | 12 | F8VB-14474-AA | |||
| A17 | GD345 (BK-BU) | 12 | F8VB-14474-AA | |||
| B1 | * | * | N/A | |||
| B2 | * | * | N/A | |||
| B3 | * | * | N/A | |||
| B4 | * | * | N/A | |||
| B5 | * | * | N/A | |||
| B6 | * | * | N/A | |||
| B7 | * | * | N/A | |||
| B8 | * | * | N/A | |||
| B9 | * | * | N/A | |||
| B10 | * | * | N/A | |||
| B11 | * | * | N/A | |||
| B12 | * | * | N/A | |||
| B13 | * | * | N/A | |||
| B14 | * | * | N/A | |||
| B15 | * | * | N/A | |||
| B16 | * | * | N/A | |||
| B17 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1576
Service Part Number:
KU2Z-14S411-CA
Gauge:
14 16 20
Pin material:
Tin & Tin (greased)
Cavities:
34
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1517
Service Part Number:
JU2Z-14S411-PA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
17
Vehicle Uses:
- Connector - Inline
