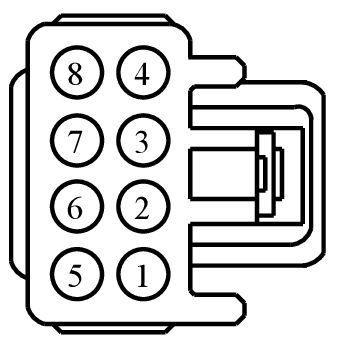

Connector End View (C801) - REAR DOOR WINDOW SWITCH RH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C801 | REAR DOOR WINDOW SWITCH RH | 14632 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BCA | DU2Z-14474-EA | 2.8 |
| 97BG-14474-BAA | DU2Z-14474-EA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBP10 (YE-OG) | 12 | FUSE - 10 OR CIRCUIT BREAKER | 97BG-14474-BCA | ||||
| 2 | CPW14 (VT-WH) | 22 | SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE) | 97BG-14474-BAA | ||||
| 3 | GD345 (BK-BU) | 12 | GROUND - PILLAR B RIGHT | 97BG-14474-BCA | ||||
| 4 | CPW23 (GY) | 12 | SWITCH - POWER WINDOW REAR RIGHT # DOWN | 97BG-14474-BCA | ||||
| 5 | CPW14 (VT-WH) | 22 | SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE) | 97BG-14474-BAA | ||||
| 6 | CPW18 (GY-VT) | 22 | SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP | 97BG-14474-BAA | ||||
| 7 | CPW17 (BN-GN) | 22 | SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN | 97BG-14474-BAA | ||||
| 8 | CPW24 (WH-VT) | 12 | SWITCH - POWER WINDOW REAR RIGHT # UP | 97BG-14474-BCA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1031
Service Part Number:
3U2Z-14S411-PPB
Gauge:
10 12
Pin material:
Tin & Silver
Cavities:
8
Vehicle Uses:
- Switch - Adjustable Pedal
- Switch - Convertable Top
- Switch - Door Lock (Cargo)
- Switch - Door Lock (LH)
- Switch - Door Lock (RH)
- Switch - Moon Roof/Sun Roof
- Switch - Power Window - Driver
- Switch - Power Window - LH - Rear
- Switch - Power Window - Passenger (Front)
- Switch - Power Window - RH - Rear
- Switch - Seat Lumbar
- Switch - Third Row Power Folding Seat
