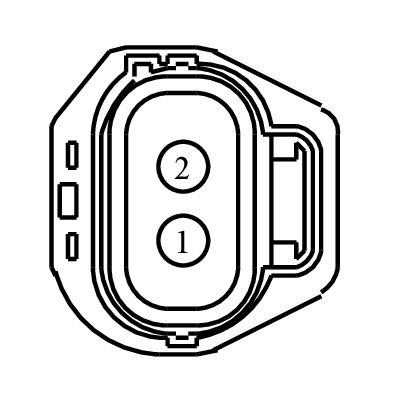

Connector End View (C703) - REAR DOOR WINDOW MOTOR LH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C703 | REAR DOOR WINDOW MOTOR LH | 14633 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BFA | DU2Z-14474-FA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPW21 (BN) | 12 | SWITCH - POWER WINDOW REAR LEFT # DOWN | 97BG-14474-BFA | ||||
| 2 | CPW22 (GN-VT) | 12 | SWITCH - POWER WINDOW REAR LEFT # UP | 97BG-14474-BFA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1245
Service Part Number:
BU2Z-14S411-BLA
Gauge:
12
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Motor - Power Window - LH - Front
- Motor - Power Window - RH - Front
