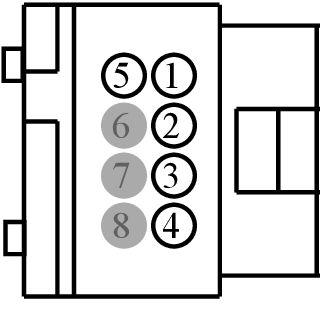

Connector End View (C622) - EXTERIOR MIRROR RH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C622 | EXTERIOR MIRROR RH | 14630 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1L2T-14421-BA | Not Available | |
| 1L2T-14421-AA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPM21 (YE-VT) | 22 | SWITCH - POWER MIRROR # RIGHT MIRROR UPWARD (IF PLUS) | 1L2T-14421-BA | ||||
| 2 | CPM20 (BN-WH) | 22 | SWITCH - POWER MIRROR # RIGHT MIRROR RIGHTWARD (IF PLUS) | 1L2T-14421-BA | ||||
| 3 | CPM23 (GY) | 22 | SWITCH - POWER MIRROR # COMMON ALL MOTORS (LEFT AND RIGHT) | 1L2T-14421-BA | ||||
| 4 | CLS25 (YE-VT) | 20 | CTRL MOD. - TURN LAMP RIGHT FRONT | 1L2T-14421-AA | ||||
| 5 | GD345 (BK-BU) | 20 | GROUND - PILLAR B RIGHT | 1L2T-14421-AA | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1484
Service Part Number:
GU2Z-14S411-SA
Gauge:
20
Pin material:
Tin (greased)
Cavities:
8
Vehicle Uses:
- Module - Liftgate
- Switch - Power Mirror
