Connector End View (C610) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C610 | INLINE | BK-GY | 1463014A005 | See Below | ||||

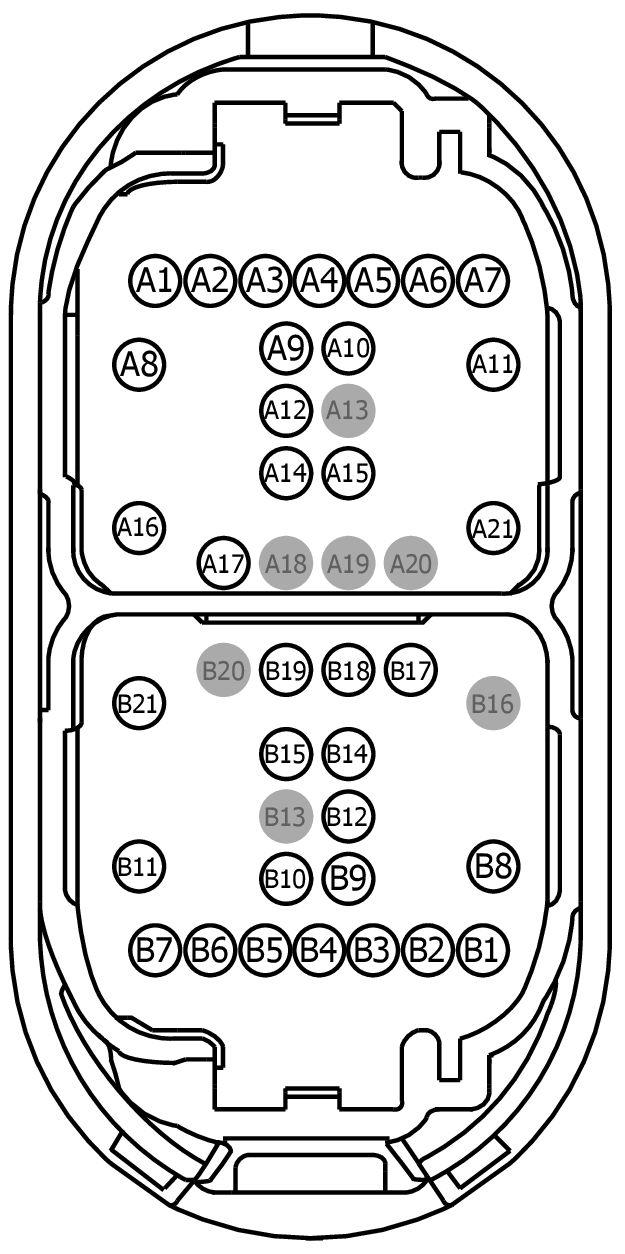

MALE
Harness
14630
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| A1 | CPL12 (VT-OG) | 20 | N/A | |||
| A2 | GD345 (BK-BU) | 22 | N/A | |||
| A3 | CPM21 (YE-VT) | 22 | N/A | |||
| A4 | CPM20 (BN-WH) | 22 | N/A | |||
| A5 | CBX07 (GN-RD) | 20 | ambient lighting | N/A | ||
| A6 | CLS25 (YE-VT) | 20 | N/A | |||
| A7 | CPM23 (GY) | 22 | N/A | |||
| A8 | CPK14 (BU-OG) | 22 | N/A | |||
| A9 | VDN15 (BU-GY) | 22 | ambient lighting | N/A | ||
| A10 | GD215 (BK-GY) | 20 | ambient lighting | N/A | ||
| A11 | CPL42 (GY-YE) | 22 | N/A | |||
| A12 | CBP06 (WH-BU) | 20 | N/A | |||
| A13 | * | * | N/A | |||
| A14 | CPW12 (GN-OG) | 22 | N/A | |||
| A15 | VLN04 (VT-GY) | 22 | N/A | |||
| A16 | CPL89 (BN-BU) | 22 | N/A | |||
| A17 | GD343 (BK-VT) | 20 | N/A | |||
| A18 | * | * | N/A | |||
| A19 | * | * | N/A | |||
| A20 | * | * | N/A | |||
| A21 | GD345 (BK-BU) | 12 | N/A | |||
| B1 | VPK40 (WH-OG) | 22 | N/A | |||
| B2 | VPK02 (VT-WH) | 22 | N/A | |||
| B3 | RPK02 (GY-YE) | 22 | N/A | |||
| B4 | RPK39 (VT-OG) | 22 | N/A | |||
| B5 | VPLA6 (BN-VT) | 22 | N/A | |||
| B6 | VME10 (WH-VT) | 18 | N/A | |||
| B7 | RME10 (WH-OG) | 18 | N/A | |||
| B8 | CPL31 (WH) | 22 | N/A | |||
| B9 | GD348 (BK-YE) | 20 | BLIS | N/A | ||
| B10 | CBB14 (VT-OG) | 20 | N/A | |||
| B11 | CRB07 (BU-BN) | 20 | BLIS | N/A | ||
| B12 | * | * | N/A | |||
| B13 | * | * | N/A | |||
| B14 | CPW13 (BN-YE) | 22 | N/A | |||
| B15 | CPL11 (GY-BN) | 18 | N/A | |||
| B16 | * | * | N/A | |||
| B17 | CPL13 (BN-GN) | 18 | N/A | |||
| B18 | VR237 (BN-WH) | 20 | N/A | |||
| B19 | RR175 (YE-OG) | 20 | N/A | |||
| B20 | * | * | N/A | |||
| B21 | CBP10 (YE-OG) | 12 | N/A | |||

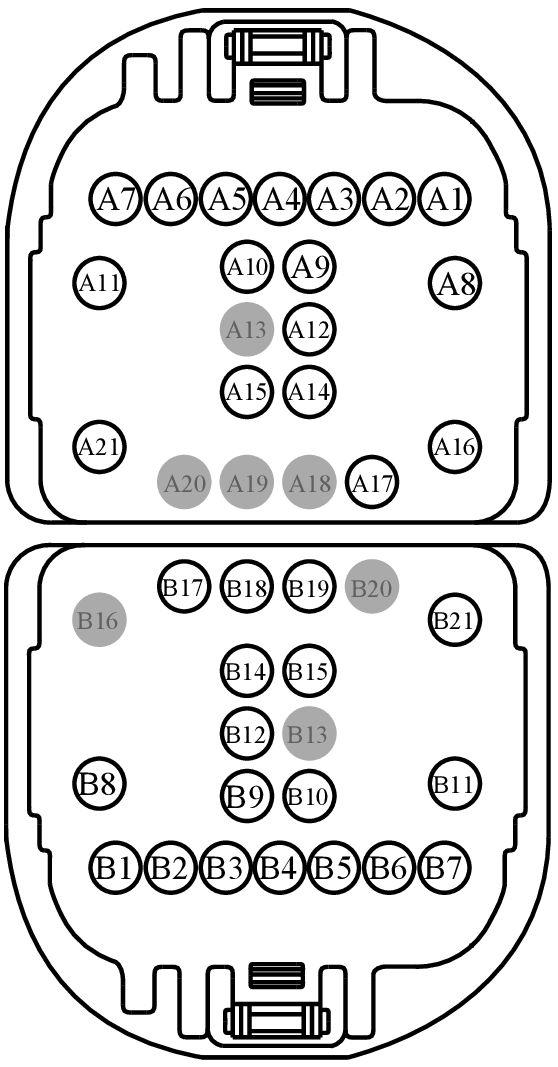

FEMALE
Harness
14A005
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| A1 | CPL12 (VT-OG) | 22 | N/A | |||
| A2 | GD345 (BK-BU) | 20 | N/A | |||
| A3 | CPM21 (YE-VT) | 22 | N/A | |||
| A4 | CPM20 (BN-WH) | 22 | N/A | |||
| A5 | CBX07 (GN-RD) | 20 | ambient lighting | N/A | ||
| A6 | CLS25 (YE-VT) | 20 | N/A | |||
| A7 | CPM23 (GY) | 22 | N/A | |||
| A8 | CPK14 (BU-OG) | 22 | N/A | |||
| A9 | VDN15 (BU-GY) | 22 | ambient lighting | N/A | ||
| A10 | GD215 (BK-GY) | 20 | ambient lighting | N/A | ||
| A11 | CPL42 (GY-YE) | 22 | N/A | |||
| A12 | CBP06 (WH-BU) | 20 | N/A | |||
| A13 | * | * | N/A | |||
| A14 | CPW12 (GN-OG) | 22 | N/A | |||
| A15 | VLN04 (VT-GY) | 22 | N/A | |||
| A16 | CPL89 (BN-BU) | 22 | N/A | |||
| A17 | GD343 (BK-VT) | 20 | N/A | |||
| A18 | * | * | N/A | |||
| A19 | * | * | N/A | |||
| A20 | * | * | N/A | |||
| A21 | GD345 (BK-BU) | 12 | N/A | |||
| B1 | VPK40 (WH-OG) | 22 | N/A | |||
| B2 | VPK02 (VT-WH) | 22 | N/A | |||
| B3 | RPK02 (GY-YE) | 22 | N/A | |||
| B4 | RPK39 (VT-OG) | 22 | N/A | |||
| B5 | VPLA6 (BN-VT) | 22 | N/A | |||
| B6 | VME10 (WH-VT) | 18 | without HARMAN | N/A | ||
| B7 | RME10 (WH-OG) | 18 | without HARMAN | N/A | ||
| B8 | CPL31 (WH) | 22 | N/A | |||
| B9 | GD348 (BK-YE) | 20 | BLIS | N/A | ||
| B10 | CBB14 (VT-OG) | 20 | N/A | |||
| B11 | CRB07 (BU-BN) | 20 | BLIS | N/A | ||
| B12 | VDB06 (GY-OG) | 22 | N/A | |||
| B13 | * | * | N/A | |||
| B14 | CPW13 (BN-YE) | 22 | N/A | |||
| B15 | CPL11 (GY-BN) | 18 | N/A | |||
| B16 | * | * | N/A | |||
| B17 | CPL13 (BN-GN) | 18 | N/A | |||
| B18 | VR237 (BN-WH) | 20 | N/A | |||
| B19 | RR175 (YE-OG) | 20 | N/A | |||
| B20 | * | * | N/A | |||
| B21 | CBP10 (YE-OG) | 12 | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1425
Service Part Number:
FU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1482
Service Part Number:
GU2Z-14S411-GB
Gauge:
14 16
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
