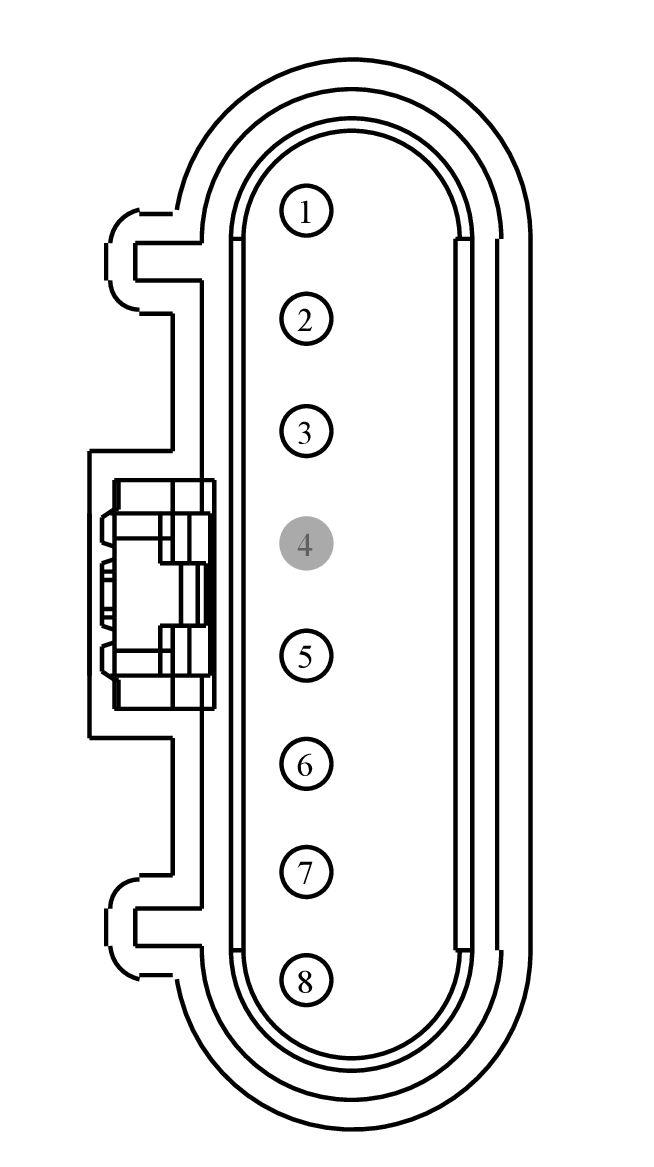

Connector End View (C525) - FRONT DOOR LATCH LH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C525 | FRONT DOOR LATCH LH | 14631 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-ADA | Not Available | |
| 97BG-14474-AEA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPL29 (YE-GY) | 22 | SWITCH - LATCH DRIVER # SET | 97BG-14474-ADA | ||||
| 2 | CPL28 (VT-GN) | 22 | SWITCH - LATCH DRIVER # RESET | 97BG-14474-ADA | ||||
| 3 | CPL26 (GN-VT) | 22 | SWITCH - LATCH DRIVER # AJAR | 97BG-14474-ADA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | GD353 (BK-YE) | 18 | GROUND - ROCKER PANEL FRONT LEFT | 97BG-14474-AEA | ||||
| 6 | CPL12 (VT-OG) | 20 | CTRL MOD. - DOOR LOCK # DOUBLE LOCK ALL LOCK | 97BG-14474-ADA | ||||
| 7 | CPL11 (GY-BN) | 18 | CTRL MOD. - DOOR LOCK # ALL LOCK | 97BG-14474-AEA | ||||
| 8 | CPL51 (BU-GN) | 18 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | 97BG-14474-AEA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1366
Service Part Number:
3U2Z-14S411-MBB
Gauge:
16
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Module - Liftgate
- Switch - Door Ajar / Interior Lamp
- Switch - Door Lock (LH)
- Switch - Door Lock (RH)
- Switch - Sliding Door Contact
