Connector End View (C510) - INLINE

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
Inline: Description Color Harness Base Part # Service Pigtail
C510 INLINE BK-GY 1463114A005 See Below

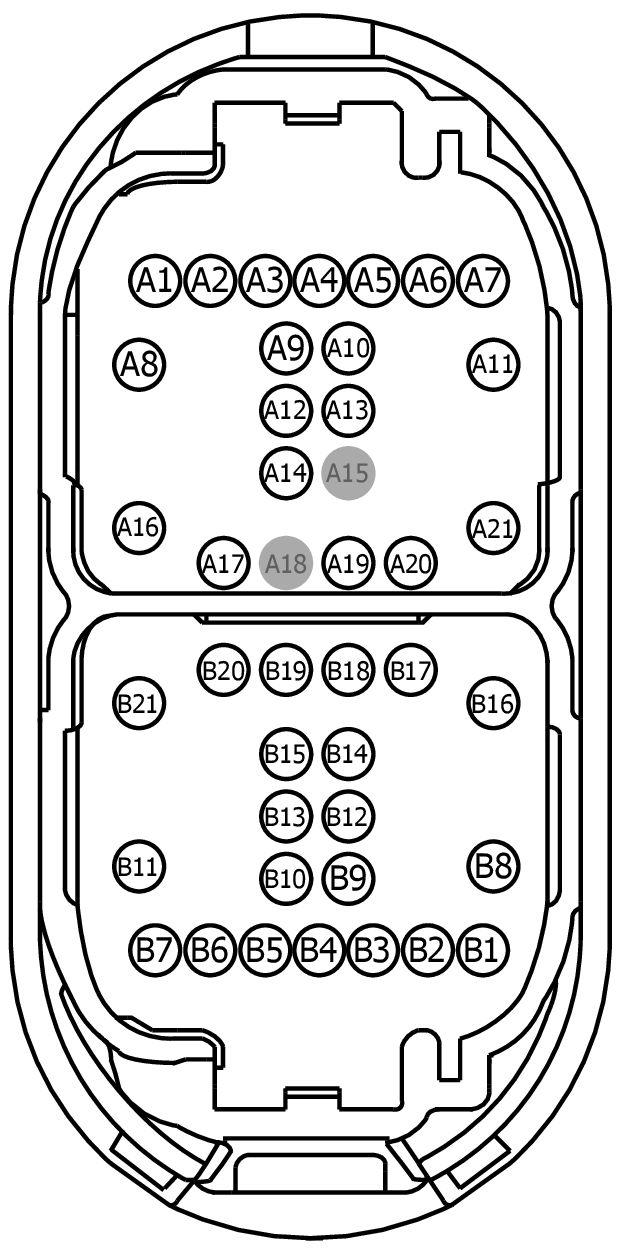

MALE

Harness

14631

GFDWR26645Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
A1 CPL26 (GN-VT) 22 N/A
A2 GD353 (BK-YE) 18 N/A
A3 CLS22 (BU-GN) 20 N/A
A4 CBB14 (VT-OG) 20 N/A
A5 CPW14 (VT-WH) 22 N/A
A6 CPW18 (GY-VT) 22 N/A
A7 CRB06 (YE-GN) 20 BLIS N/A
A8 CPW17 (BN-GN) 22 N/A
A9 VLN04 (VT-GY) 22 N/A
A10 CPK14 (BU-OG) 22 N/A
A11 GD343 (BK-VT) 20 N/A
A12 CPL51 (BU-GN) 18 N/A
A13 CPL11 (GY-BN) 18 N/A
A14 CPL28 (VT-GN) 22 N/A
A15 * * N/A
A16 CPW12 (GN-OG) 22 N/A
A17 CPW13 (BN-YE) 22 N/A
A18 * * N/A
A19 * * N/A
A20 GD215 (BK-GY) 20 N/A
A21 CPL12 (VT-OG) 20 N/A
B1 VME07 (WH) 18 N/A
B2 RME07 (WH-BN) 18 N/A
B3 RPK01 (WH-GN) 22 N/A
B4 RPK39 (VT-OG) 22 N/A
B5 CBP06 (WH-BU) 20 N/A
B6 CPW16 (BU-OG) 22 N/A
B7 CPM23 (GY) 22 N/A
B8 CPM20 (BN-WH) 22 N/A
B9 CPM21 (YE-VT) 22 N/A
B10 CPL29 (YE-GY) 22 N/A
B11 CBX07 (GN-RD) 20 ambient lighting N/A
B12 VPK39 (GN-VT) 22 N/A
B13 VPK01 (BN-YE) 22 N/A
B14 CPL42 (GY-YE) 22 N/A
B15 CPL89 (BN-BU) 22 N/A
B16 CBP10 (YE-OG) 12 N/A
B17 CPW15 (YE) 22 N/A
B18 VR236 (BU-OG) 20 N/A
B19 RR174 (WH-OG) 20 N/A
B20 VDN15 (BU-GY) 22 N/A
B21 GD353 (BK-YE) 12 N/A

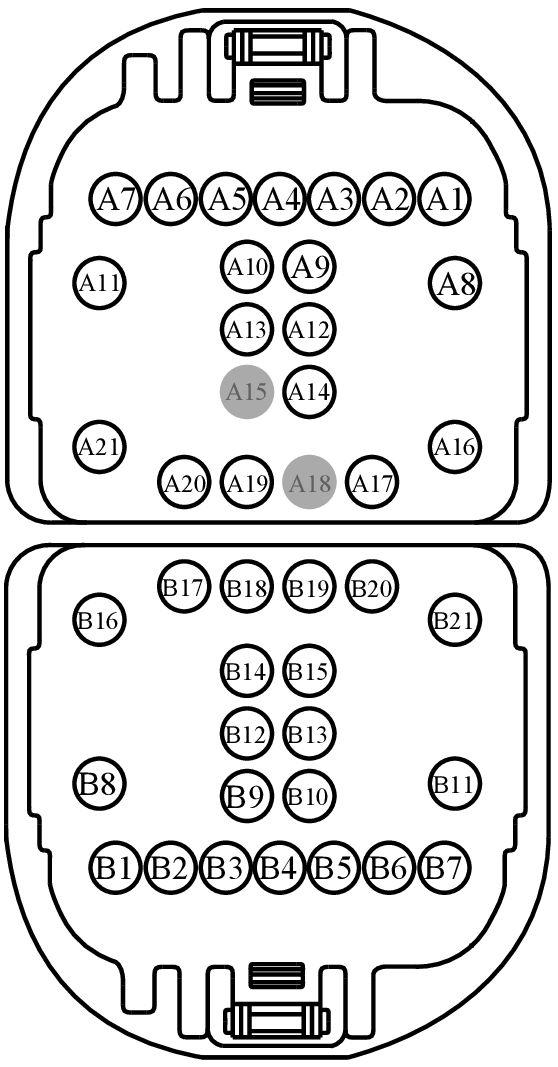

FEMALE

Harness

14A005

GFDWR26646Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
A1 CPL26 (GN-VT) 22 N/A
A2 GD353 (BK-YE) 18 N/A
A3 CLS21 (BU-GN) 20 N/A
A4 CBB14 (VT-OG) 20 N/A
A5 CPW14 (VT-WH) 22 N/A
A6 CPW18 (GY-VT) 22 N/A
A7 CRB06 (YE-GN) 20 N/A
A8 CPW17 (BN-GN) 22 N/A
A9 VLN04 (VT-GY) 22 N/A
A10 CPK14 (BU-OG) 22 N/A
A11 GD343 (BK-VT) 20 N/A
A12 CPL51 (BU-GN) 18 N/A
A13 CPL11 (GY-BN) 18 N/A
A14 CPL28 (VT-GN) 22 N/A
A15 * * N/A
A16 CPW12 (GN-OG) 22 N/A
A17 CPW13 (BN-YE) 22 N/A
A18 * * N/A
A19 CPL12 (VT-OG) 22 N/A
A20 CPL28 (VT-GN) 22 N/A
A20 GD215 (BK-GY) 20 N/A
A21 CPL12 (VT-OG) 22 N/A
B1 VME07 (WH) 18 N/A
B2 RME07 (WH-BN) 18 N/A
B3 RPK01 (WH-GN) 22 N/A
B4 RPK39 (VT-OG) 22 N/A
B5 CBP06 (WH-BU) 20 N/A
B6 CPW16 (BU-OG) 22 N/A
B7 CPM23 (GY) 22 N/A
B8 CPM20 (BN-WH) 22 N/A
B9 CPM21 (YE-VT) 22 N/A
B10 CPL29 (YE-GY) 22 N/A
B11 CBX07 (GN-RD) 20 ambient lighting N/A
B12 VPK39 (GN-VT) 22 N/A
B13 VPK01 (BN-YE) 22 N/A
B14 CPL42 (GY-YE) 22 N/A
B15 CPL89 (BN-BU) 22 N/A
B16 CBP10 (YE-OG) 12 N/A
B17 CPW15 (YE) 22 N/A
B18 VR236 (BU-OG) 20 N/A
B19 RR174 (WH-OG) 20 N/A
B20 VDN15 (BU-GY) 22 ambient lighting N/A
B21 GD353 (BK-YE) 12 N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1425

GFDWR769Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-RA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

21

Vehicle Uses:

Pigtail Kit Part Number WPT-1482

GFDWR779Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-GB

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

21

Vehicle Uses:
