Connector End View (C495) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C495 | INLINE | 14A41114B562 | See Below | |||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |

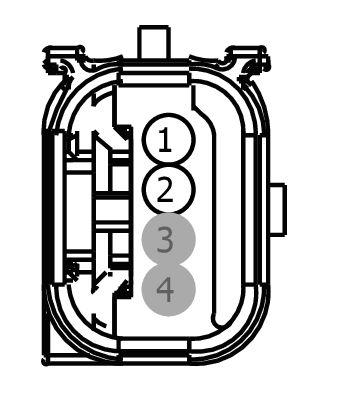

MALE
Harness
14A411
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CPR63 (GY-YE) | 20 | 9U5T-14421-BA | |||
| 2 | GD347 (BK-GN) | 20 | 9U5T-14421-BA | |||
| 3 | * | * | N/A | |||
| 4 | * | * | N/A | |||

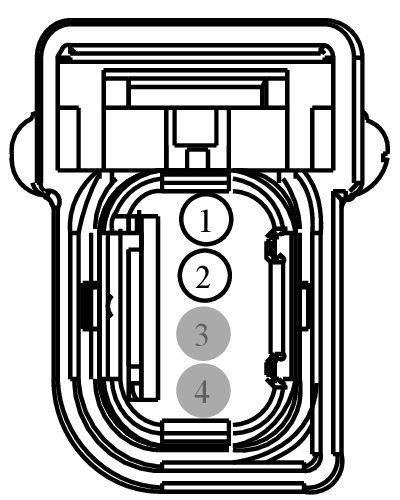

FEMALE
Harness
14B562
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CPR63 (GY-YE) | 20 | 8U5T-14474-BB | |||
| 2 | GD347 (BK-GN) | 20 | 8U5T-14474-BB | |||
| 3 | * | * | N/A | |||
| 4 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1568
Service Part Number:
FU2Z-14S411-ANB
Gauge:
20
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Switch - Keyless Door Handle
Pigtail Kit Part Number WPT-1443
Service Part Number:
FU2Z-14S411-ANA
Gauge:
20
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Antenna - Keyless Entry
- Lamp - Front Turn
- Lamp - Side Marker (Rear Fender)
- Switch - Keyless Door Handle
