Connector End View (C489) - CARGO LAMP
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C489 | CARGO LAMP | 14A005 | part# N/A | See Below | ||
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VLN33 (GY-VT) | 20 | CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) | 91AG-13K370-AB | ||||
| 2 | GD353 (BK-YE) | 20 | GROUND - ROCKER PANEL FRONT LEFT | 91AG-13K370-AB | ||||

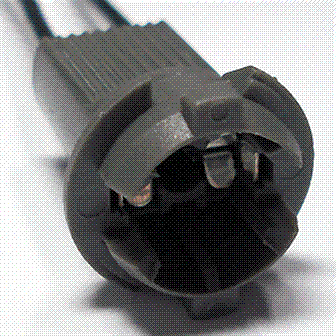

Available Pigtail Kits
Pigtail Kit Part Number WPT-1098
Service Part Number:
3U2Z-14S411-DZAB
Gauge:
18
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Lamp - Storage Compartment - Trunk
