Connector End View (C465) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C465 | INLINE | 14B56217N400 | See Below | |||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-AAB | Not Available | |
| 97BG-14474-AAB | DU2Z-14474-DA | 1.5 |

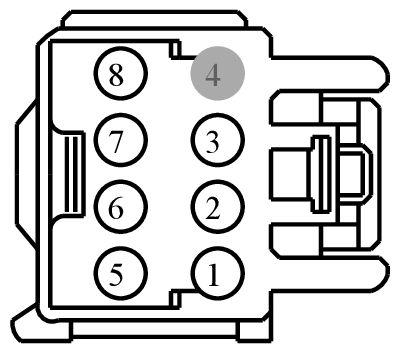

MALE
Harness
14B562
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VMP19 (WH-GN) | 20 | 97BG-14421-AAB | |||
| 2 | RMP19 (BN-VT) | 20 | 97BG-14421-AAB | |||
| 3 | DMP19 (BK) | 20 | 97BG-14421-AAB | |||
| 4 | * | * | N/A | |||
| 5 | CBB58 (WH-OG) | 20 | 97BG-14421-AAB | |||
| 6 | CLS05 (YE-VT) | 20 | 97BG-14421-AAB | |||
| 7 | GD345 (BK-BU) | 20 | 97BG-14421-AAB | |||
| 8 | VDN14 (VT-WH) | 20 | 97BG-14421-AAB | |||

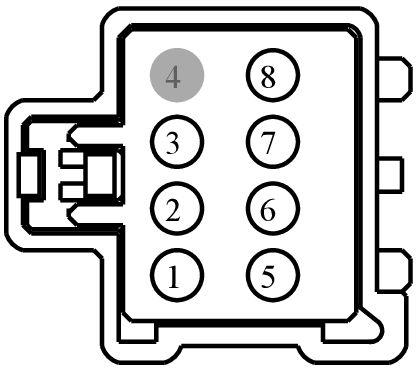

FEMALE
Harness
17N400
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VMP19 (WH-GN) | 20 | 97BG-14474-AAB | |||
| 2 | RMP19 (BN-VT) | 20 | 97BG-14474-AAB | |||
| 3 | DMP19 (BK) | 20 | 97BG-14474-AAB | |||
| 4 | * | * | N/A | |||
| 5 | CBB58 (WH-OG) | 20 | 97BG-14474-AAB | |||
| 6 | CLS05 (YE-VT) | 20 | 97BG-14474-AAB | |||
| 7 | GD345 (BK-BU) | 20 | 97BG-14474-AAB | |||
| 8 | VDN14 (VT-WH) | 20 | 97BG-14474-AAB | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1034
Service Part Number:
3U2Z-14S411-ZTB
Gauge:
14
Pin material:
Tin
Cavities:
8
Vehicle Uses:
- Lamp - Park/Turn/Stop
- Lamp - Park/Turn/Stop/Reverse - Inline (Male)
Pigtail Kit Part Number WPT-1128
Service Part Number:
3U2Z-14S411-BCB
Gauge:
16
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Actuator - Door Lock - Decklid/Liftgate
- Mirror - Sideview
- Solenoid - Brake Shift Park Interlock
- Switch - Headlamp
- Switch - Power Window - Quarter Glass
- Switch - Sliding Door Contact
