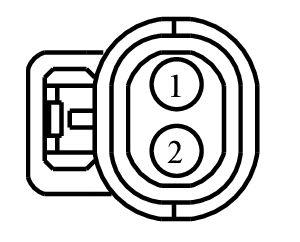

Connector End View (C451) - REVERSING LAMP LH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C451 |
REVERSING LAMP LH |
15K868 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 6M5T-14474-ABA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD345 (BK-BU) |
20 |
GROUND - PILLAR B RIGHT |
6M5T-14474-ABA |
| 2 |
CLS10 (GN-BN) |
20 |
CTRL MOD. - REVERSE LEFT OR COMMON |
6M5T-14474-ABA |
