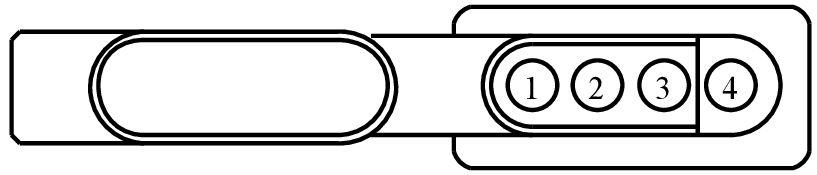

Connector End View (C439) - TRAILER TOW CONNECTOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C439 | TRAILER TOW CONNECTOR | 13A576 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3M5T-14474-HCA | DU2Z-14474-EA | 2.8 |
| 3M5T-14474-HAA | DU2Z-14474-EA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD353 (BK-YE) | 12 | GROUND - ROCKER PANEL FRONT LEFT | 3M5T-14474-HCA | ||||
| 2 | CAT20 (BN) | 12 | CTRL MOD. - TRAILER TOW # PARK LAMPS LEFT | 3M5T-14474-HCA | ||||
| 3 | CAT06 (YE) | 18 | CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT | 3M5T-14474-HAA | ||||
| 4 | CAT09 (GN) | 18 | CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT | 3M5T-14474-HAA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-840
Service Part Number:
5U2Z-14S411-JA
Gauge:
12
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Trailer Tow - Vehicle Side
