Connector End View (C438) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C438 | INLINE | 13A57614A005 | See Below | |||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3M5T-14474-HCA | DU2Z-14474-EA | 2.8 |
| 97BG-14474-BEA | DU2Z-14474-FA | 2.8 |
| 3M5T-14474-HAA | DU2Z-14474-EA | 2.8 |
| 97BG-14474-BFA | DU2Z-14474-FA | 2.8 |

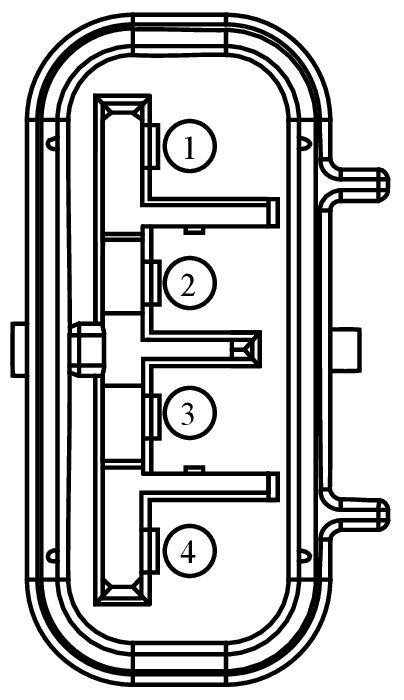

MALE
Harness
13A576
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD353 (BK-YE) | 12 | 3M5T-14474-HCA | |||
| 2 | CAT20 (BN) | 12 | 3M5T-14474-HCA | |||
| 3 | CAT06 (YE) | 20 | 3M5T-14474-HAA | |||
| 4 | CAT09 (GN) | 20 | 3M5T-14474-HAA | |||

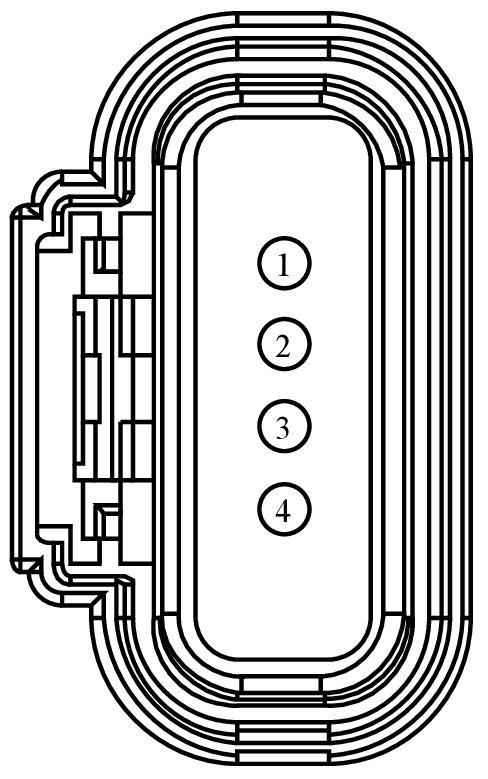

FEMALE
Harness
14A005
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD353 (BK-YE) | 12 | 97BG-14474-BFA | |||
| 2 | CAT20 (BN) | 12 | 97BG-14474-BFA | |||
| 3 | CAT06 (YE) | 18 | 97BG-14474-BEA | |||
| 4 | CAT09 (GN) | 18 | 97BG-14474-BEA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1591
Service Part Number:
3U2Z-14S411-ZEB
Gauge:
14
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Fuel Pump/Sending Unit
- Module - Trailer Tow
- Module - Variable Speed Blower Controller
- Motor - Heater/AC Blower (Front)
- Resistor - Blower Motor (Auxiliary)
- Resistor - Blower Motor (Front)
- Resistor - Blower Motor (Rear)
- Switch - Heater / A/C Blower (Front)
