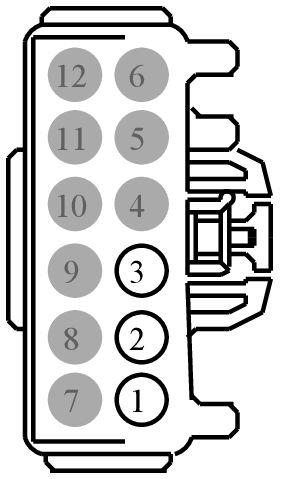

Connector End View (C425C) - TRAILER TOW MODULE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C425C | TRAILER TOW MODULE | 14A005 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BBA | DU2Z-14474-EA | 2.8 |
| 97BG-14474-BCA | DU2Z-14474-EA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CAT06 (YE) | 18 | CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT | 97BG-14474-BBA | ||||
| 2 | CAT09 (GN) | 18 | CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT | 97BG-14474-BBA | ||||
| 3 | CAT20 (BN) | 12 | CTRL MOD. - TRAILER TOW # PARK LAMPS LEFT | 97BG-14474-BCA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-396
Service Part Number:
3U2Z-14S411-BKA
Gauge:
12
Pin material:
Tin
Cavities:
12
Vehicle Uses:
- Module - Liftgate
- Switch - Headlamp
- Switch - Seat (driver)
- Switch - Seat (passenger)
