Connector End View (C411) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C411 | INLINE | 14A00515K868 | See Below | |||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| 2L1T-14421-CA | EU2Z-14421-CA | 1.5 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |

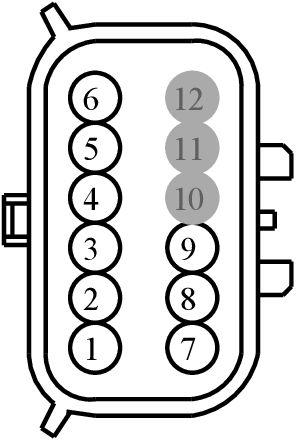

MALE
Harness
14A005
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS05 (YE-VT) | 20 | BU5T-14421-HA | |||
| 2 | GD345 (BK-BU) | 16 | 2L1T-14421-CA | |||
| 3 | CLS37 (WH-BU) | 20 | BU5T-14421-HA | |||
| 4 | CBB58 (WH-OG) | 22 | BU5T-14421-HA | |||
| 5 | VDN14 (YE-VT) | 22 | BU5T-14421-HA | |||
| 6 | VMP19 (WH-GN) | 22 | BU5T-14421-HA | |||
| 7 | RMP19 (BN-VT) | 22 | BU5T-14421-HA | |||
| 8 | DMP19 (BK) | 20 | BU5T-14421-HA | |||
| 9 | CLS10 (GN-BN) | 20 | BU5T-14421-HA | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | * | * | N/A | |||

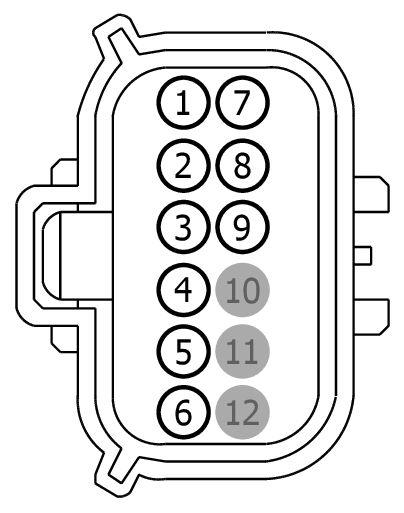

FEMALE
Harness
15K868
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS05 (YE-VT) | 20 | BU5T-14474-UA | |||
| 2 | GD345 (BK-BU) | 16 | 7C3T-14474-DA | |||
| 3 | CLS37 (WH-BU) | 20 | BU5T-14474-UA | |||
| 4 | CBB58 (WH-OG) | 22 | BU5T-14474-UA | |||
| 5 | VDN14 (VT-WH) | 22 | BU5T-14474-UA | |||
| 6 | VMP19 (WH-GN) | 22 | BU5T-14474-UA | |||
| 7 | RMP19 (BN-VT) | 22 | BU5T-14474-UA | |||
| 8 | DMP19 (BK) | 20 | BU5T-14474-UA | |||
| 9 | CLS10 (GN-BN) | 20 | BU5T-14474-UA | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1485
Service Part Number:
HU2Z-14S411-CA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1601
Service Part Number:
HU2Z-14S411-CB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Module - Anti-Lock Brake System
- Module - Wigwag Lamps
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
