Connector End View (C410) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C410 | INLINE | 14A00515K868 | See Below | |||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |

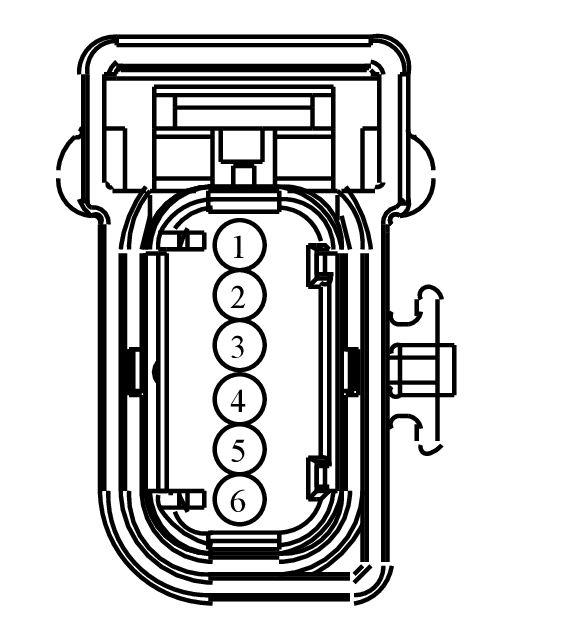

MALE
Harness
14A005
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | LMP07 (BU-WH) | 22 | 9U5T-14421-BA | |||
| 2 | RMP07 (GN-WH) | 22 | 9U5T-14421-BA | |||
| 3 | VMP17 (YE-OG) | 22 | 9U5T-14421-BA | |||
| 4 | VMP16 (YE-GY) | 22 | 9U5T-14421-BA | |||
| 5 | VMP14 (WH-OG) | 22 | 9U5T-14421-BA | |||
| 6 | VMP15 (YE-GN) | 22 | ||||

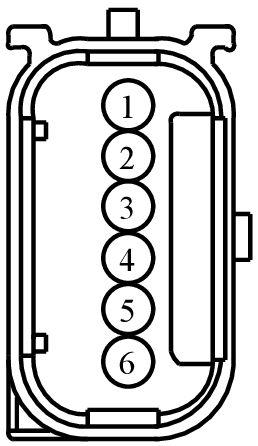

FEMALE
Harness
15K868
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | LMP07 (BU-WH) | 22 | 8U5T-14474-BB | |||
| 2 | RMP07 (GN-WH) | 22 | 8U5T-14474-BB | |||
| 3 | VMP17 (YE-OG) | 22 | 8U5T-14474-BB | |||
| 4 | VMP16 (YE-GY) | 22 | 8U5T-14474-BB | |||
| 5 | VMP14 (WH-OG) | 22 | 8U5T-14474-BB | |||
| 6 | VMP15 (YE-GN) | 22 | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1329
Service Part Number:
DU2Z-14S411-EA
Gauge:
20
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Antenna - Keyless Entry
- Handle - Decklid
- Switch - Keyless Entry
- Switch - Seatbelt
