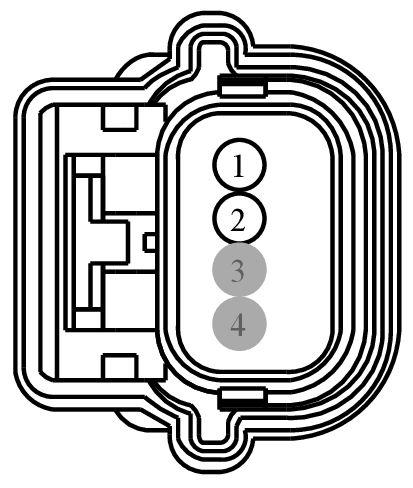

Connector End View (C325) - PASSIVE ANTI-THEFT SYSTEM (PATS) CENTER ANTENNA
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C325 | PASSIVE ANTI-THEFT SYSTEM (PATS) CENTER ANTENNA | 14A005 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VPK06 (GY-VT) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) + | 8U5T-14474-BB | ||||
| 2 | RPK06 (BU-WH) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) - | 8U5T-14474-BB | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1569
Service Part Number:
CU2Z-14S411-AGB
Gauge:
20
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Antenna - Keyless Entry
- Motor - Active Grill Shutter
- Sensor - Brake Pedal Position
- Sensor - Clutch Master Cylinder
- Sensor - Gear Neutral
Pigtail Kit Part Number WPT-1307
Service Part Number:
CU2Z-14S411-AGA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Antenna - Keyless Entry
- Sensor - Brake Pedal Position
- Sensor - Clutch Master Cylinder
