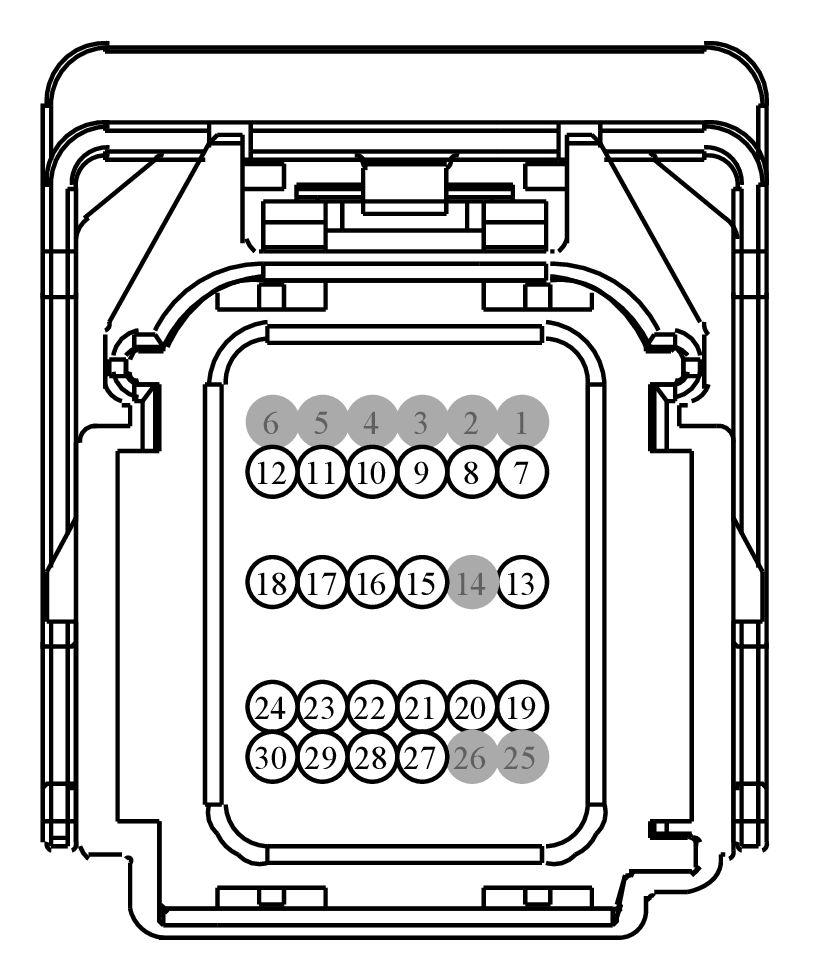

Connector End View (C310A) - RESTRAINTS CONTROL MODULE (RCM)
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C310A |
RESTRAINTS CONTROL MODULE (RCM) |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 8U5T-14474-BB |
DU2Z-14474-CA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CR104 (YE-BU) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 2 + |
dual stage airbag |
8U5T-14474-BB |
| 8 |
RR104 (WH-BU) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 2 - |
dual stage airbag |
8U5T-14474-BB |
| 9 |
RR102 (WH) |
20 |
CTRL MOD. - AIR BAG DRIVER 2 - |
dual stage airbag |
8U5T-14474-BB |
| 10 |
CR102 (BU) |
20 |
CTRL MOD. - AIR BAG DRIVER 2 + |
dual stage airbag |
8U5T-14474-BB |
| 11 |
CR144 (GY-OG) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING + |
dual stage airbag |
8U5T-14474-BB |
| 12 |
RR144 (VT-GN) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING - |
dual stage airbag |
8U5T-14474-BB |
| 13 |
CR189 (BU-OG) |
22 |
CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # ON |
8U5T-14474-BB |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
VR214 (WH-BU) |
20 |
SENSOR - IMPACT FRONT 2ND |
8U5T-14474-BB |
| 16 |
RR130 (GN-BU) |
20 |
CTRL MOD. - SENSOR IMPACT FRONT 2ND |
8U5T-14474-BB |
| 17 |
RR129 (YE-GY) |
20 |
CTRL MOD. - SENSOR IMPACT FRONT 1ST - |
8U5T-14474-BB |
| 18 |
VR213 (VT-GN) |
20 |
SENSOR - IMPACT FRONT 1ST |
8U5T-14474-BB |
| 19 |
CR194 (VT-WH) |
22 |
CTRL MOD. - EXTENDED POWER # RESTRAINTS CONTROL MODULE POWER |
8U5T-14474-BB |
| 20 |
CR190 (GY-BN) |
22 |
CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # OFF |
8U5T-14474-BB |
| 21 |
RR139 (YE) |
20 |
CTRL MOD. - AIR BAG DRIVER KNEE - |
8U5T-14474-BB |
| 22 |
CR139 (VT-WH) |
20 |
CTRL MOD. - AIR BAG DRIVER KNEE + |
8U5T-14474-BB |
| 23 |
CR169 (VT) |
20 |
CTRL MOD. - AIR BAG PASSENGER KNEE + |
8U5T-14474-BB |
| 24 |
RR169 (GY-VT) |
20 |
CTRL MOD. - AIR BAG PASSENGER KNEE - |
8U5T-14474-BB |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
* |
* |
Not Used |
N/A |
| 27 |
RR103 (VT-GN) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 1 - |
8U5T-14474-BB |
| 28 |
CR103 (GY-BU) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 1 + |
8U5T-14474-BB |
| 29 |
CR101 (VT-BN) |
20 |
CTRL MOD. - AIR BAG DRIVER 1+ |
8U5T-14474-BB |
| 30 |
RR101 (YE-GN) |
20 |
CTRL MOD. - AIR BAG DRIVER 1 - |
8U5T-14474-BB |
