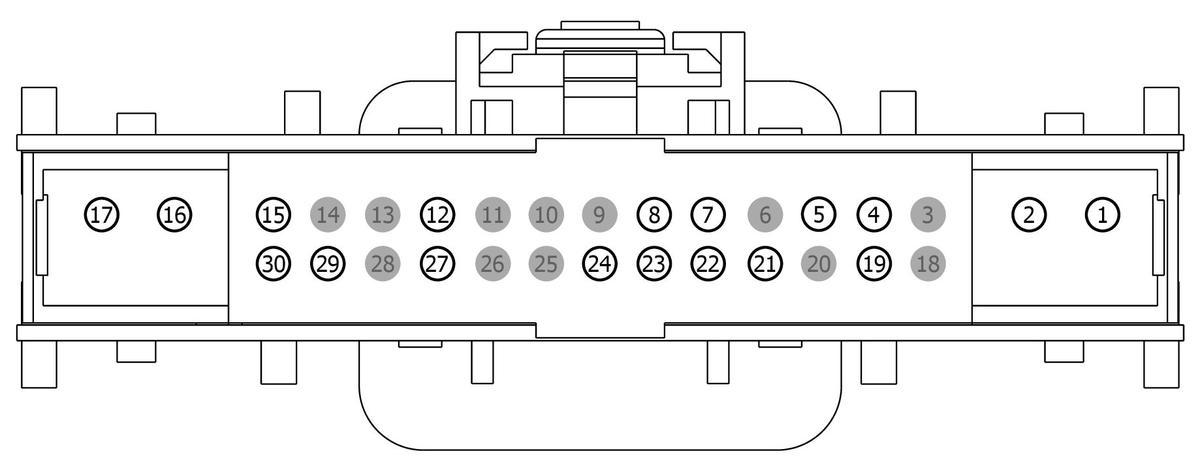

Connector End View (C294B) - HVAC CONTROL MODULE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C294B |
HVAC CONTROL MODULE |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| FU5T-14474-LB |
DU2Z-14474-AA |
0.64 |
| 7C3T-14474-CA |
DU2Z-14474-DA |
1.5 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBB40 (VT-RD) |
20 |
FUSE - 40 OR CIRCUIT BREAKER |
heated seats |
9U5T-14474-DB |
| 2 |
SBB40 (VT-RD) |
20 |
FUSE - 40 OR CIRCUIT BREAKER |
heated seats |
9U5T-14474-DB |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
VH409 (WH) |
22 |
SENSOR - DISCHARGE TEMP. # LEFT (LEFT FRONT PANEL) |
FU5T-14474-LB |
| 5 |
VH410 (GY-BU) |
22 |
SENSOR - DISCHARGE TEMP. # LEFT 2ND (LEFT FRONT FLOOR) |
FU5T-14474-LB |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CH310 (GN) |
22 |
CTRL MOD. - RELAY PTC BANK 1 |
PTC heater |
FU5T-14474-LB |
| 8 |
CH311 (VT-GN) |
22 |
CTRL MOD. - RELAY PTC BANK 2 |
PTC heater |
FU5T-14474-LB |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
CRD21 (WH-BN) |
22 |
CTRL MOD. - RELAY HEATER FRONT WINDOW LEFT |
heated windshield |
FU5T-14474-LB |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
RHS10 (BU-OG) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. |
heated seats |
9U5T-14474-DB |
| 16 |
CHS02 (YE-BU) |
20 |
CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER + |
heated seats |
7C3T-14474-CA |
| 17 |
CHS07 (GY-BU) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER + |
heated seats |
7C3T-14474-CA |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
VH413 (WH-BU) |
22 |
SENSOR - HUMIDITY |
FU5T-14474-LB |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
VH416 (VT-GY) |
22 |
SENSOR - SUN LOAD # LEFT |
FU5T-14474-LB |
| 22 |
VH417 (YE-OG) |
22 |
SENSOR - SUN LOAD # RIGHT |
FU5T-14474-LB |
| 23 |
CE937 (VT-GY) |
22 |
SWITCH - START/STOP DISABLE |
FU5T-14474-LB |
| 24 |
CE469 (BN) |
22 |
CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR |
FU5T-14474-LB |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
* |
* |
Not Used |
N/A |
| 27 |
RH103 (GY) |
22 |
CTRL MOD. - CLIMATE # I. T. S. ASPIRATOR MOTOR - |
FU5T-14474-LB |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
VH414 (GN-BU) |
22 |
SENSOR - INCAR TEMP. |
FU5T-14474-LB |
| 30 |
RHS05 (YE-VT) |
20 |
CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. |
heated seats |
9U5T-14474-DB |
