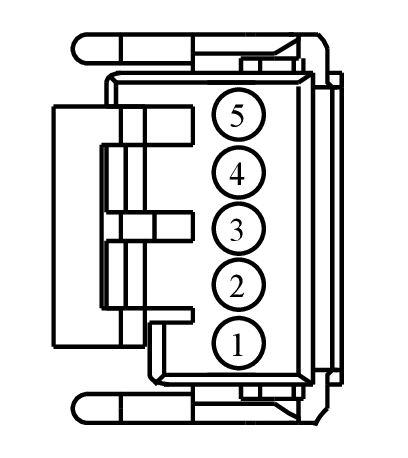

Connector End View (C286) - AUTOLAMP/SUNLOAD SENSOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C286 |
AUTOLAMP/SUNLOAD SENSOR |
BU |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 6W8T-14474-KA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VH416 (VT-GY) |
22 |
SENSOR - SUN LOAD # LEFT |
6W8T-14474-KA |
| 2 |
VH417 (YE-OG) |
22 |
SENSOR - SUN LOAD # RIGHT |
6W8T-14474-KA |
| 3 |
RH111 (GY-BU) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS |
6W8T-14474-KA |
| 4 |
VLF14 (BU-BN) |
22 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + |
6W8T-14474-KA |
| 5 |
RLF14 (GY-BN) |
22 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - |
6W8T-14474-KA |
