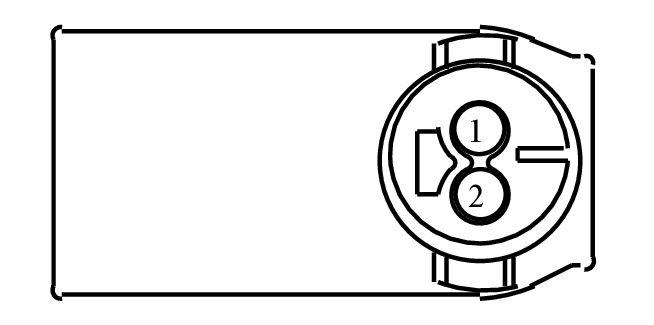

Connector End View (C256A) - PASSENGER AIRBAG
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C256A | PASSENGER AIRBAG | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR103 (GY-BU) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 + | 8U5T-14474-BB | ||||
| 2 | RR103 (VT-GN) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 - | 8U5T-14474-BB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1226
Service Part Number:
BU2Z-14S411-BJA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Squib - Airbag (Passenger)
