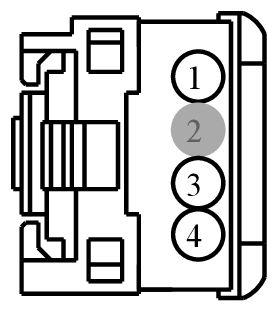

Connector End View (C252) - PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C252 |
PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| FU5T-14474-LB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CE436 (VT-OG) |
22 |
CTRL MOD. - WAKE UP PCM |
FU5T-14474-LB |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VDN01 (BU-WH) |
22 |
CTRL MOD. - LIN BUS # BCM 1 |
FU5T-14474-LB |
| 4 |
GD265 (BK) |
22 |
GROUND - STEERING COLUMN BRACKET |
FU5T-14474-LB |
