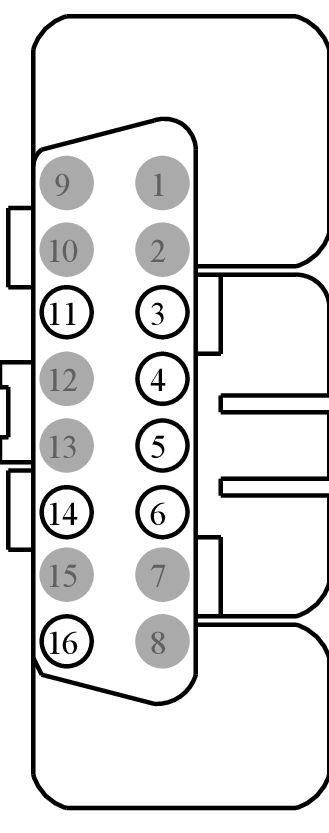

Connector End View (C251) - DATA LINK CONNECTOR (DLC)

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C251	DATA LINK CONNECTOR (DLC)	BK	PIA	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	N/A
4	* (*)	*	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	N/A
5	* (*)	*	GROUND - INSTRUMENT PANEL STRUCTURE	N/A
6	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	N/A
15	*	*	Not Used	N/A
16	* (*)	*	FUSE - 24 OR CIRCUIT BREAKER	N/A

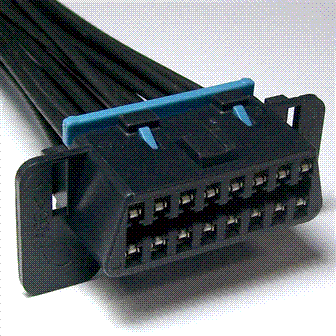

Available Pigtail Kits

Pigtail Kit Part Number WPT-1176

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BFA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Test Connector - Diagnostic
