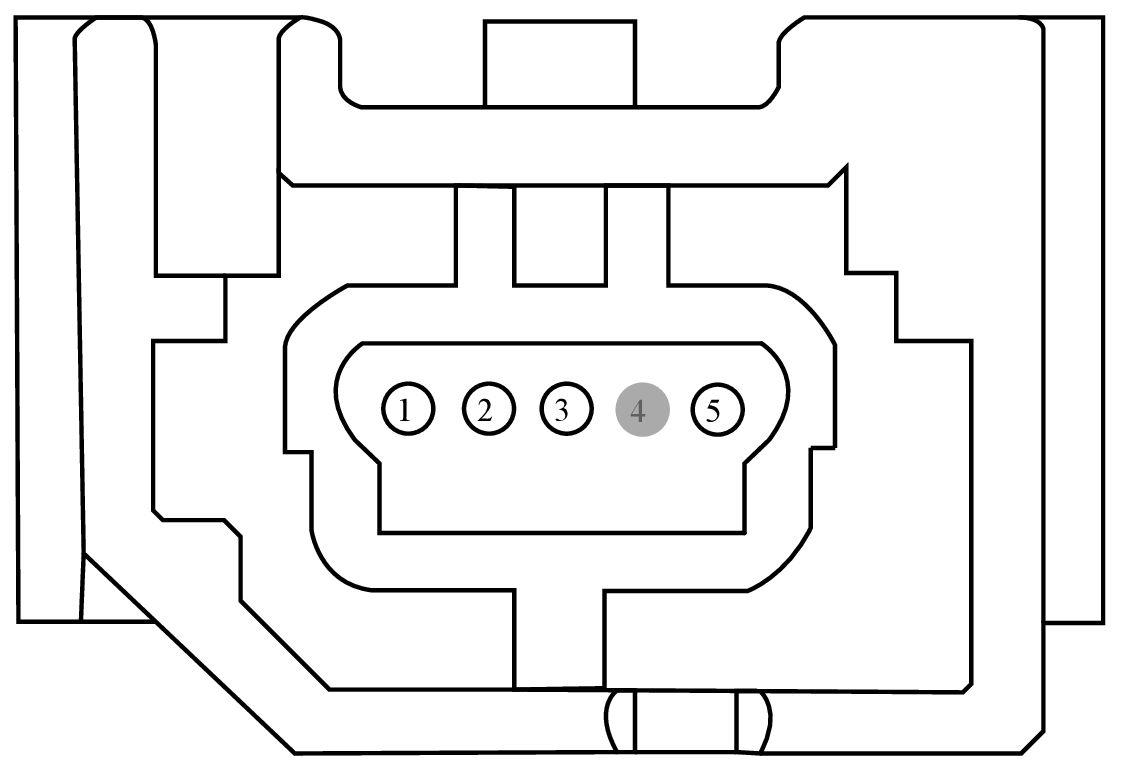

Connector End View (C240D) - AUDIO CONTROL MODULE (ACM)
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C240D |
AUDIO CONTROL MODULE (ACM) |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* (*) |
* |
USB1 VBUS |
NA |
| 2 |
* (*) |
* |
USB1 D- |
NA |
| 3 |
* (*) |
* |
USB1 D+ |
NA |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* (*) |
* |
USB1 GND |
NA |
