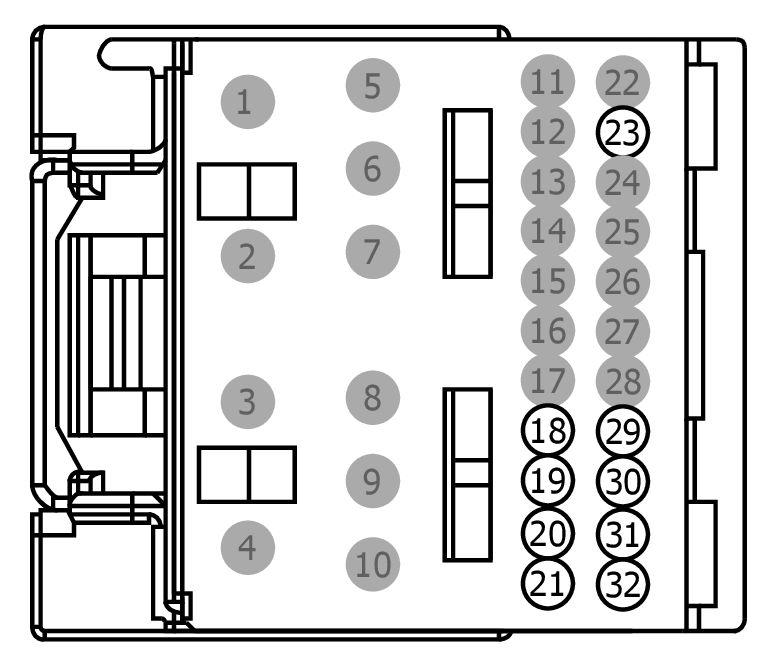

Connector End View (C240B) - AUDIO CONTROL MODULE (ACM)
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C240B |
AUDIO CONTROL MODULE (ACM) |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 8U5T-14474-BB |
DU2Z-14474-CA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
VME90 (GY-BU) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) |
8U5T-14474-BB |
| 19 |
VME80 (VT-GN) |
22 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) |
8U5T-14474-BB |
| 20 |
VME52 (BU) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + |
8U5T-14474-BB |
| 21 |
VME53 (VT-GN) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + |
8U5T-14474-BB |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
CME27 (YE-VT) |
20 |
CTRL MOD. - AUDIO # ENABLE / CLIPPING |
8U5T-14474-BB |
| 24 |
* |
* |
Not Used |
N/A |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
* |
* |
Not Used |
N/A |
| 27 |
* |
* |
Not Used |
N/A |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
VME91 (WH-BN) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) |
8U5T-14474-BB |
| 30 |
RME80 (BU-GY) |
22 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) |
8U5T-14474-BB |
| 31 |
RME52 (GY-OG) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - |
8U5T-14474-BB |
| 32 |
RME53 (BN-WH) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - |
8U5T-14474-BB |
