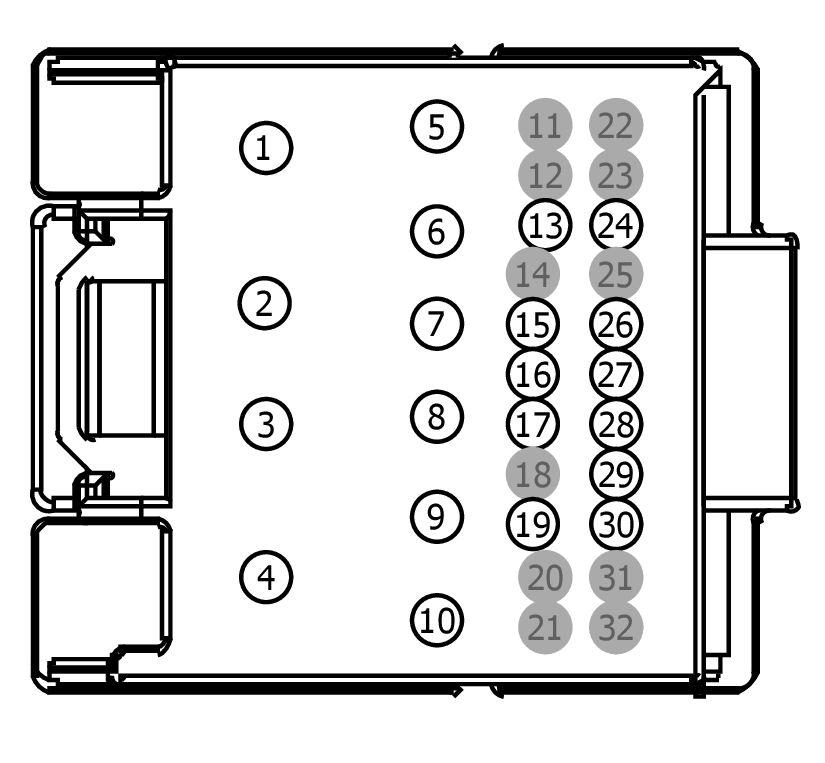

Connector End View (C240A) - AUDIO CONTROL MODULE (ACM)
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C240A |
AUDIO CONTROL MODULE (ACM) |
14401 |
|
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 3M5T-14474-DBA |
Not Available |
| 3M5T-14474-DAA |
Not Available |
| 8U5T-14474-BB |
DU2Z-14474-CA |
0.64 |
| 3M5T-14474-HCA |
DU2Z-14474-EA |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBP23 (WH-RD) |
12 |
FUSE - 23 OR CIRCUIT BREAKER |
3M5T-14474-HCA |
| 2 |
RME10 (WH-OG) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - |
3M5T-14474-DBA |
| 3 |
VME10 (WH-VT) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + |
3M5T-14474-DBA |
| 4 |
GD285 (BK-WH) |
12 |
GROUND - INSTRUMENT PANEL STRUCTURE # 5TH POINT |
3M5T-14474-HCA |
| 5 |
RME09 (BN-YE) |
20 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) - |
3M5T-14474-DAA |
| 6 |
VME09 (WH-RD) |
20 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) + |
3M5T-14474-DAA |
| 7 |
RME07 (WH-BN) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - |
3M5T-14474-DBA |
| 8 |
VME07 (WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + |
3M5T-14474-DBA |
| 9 |
RME12 (BN-BU) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) - |
3M5T-14474-DAA |
| 10 |
VME12 (BN-WH) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) + |
3M5T-14474-DAA |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
VME06 (GN) |
20 |
CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP + |
8U5T-14474-BB |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
VMM23 (BN-VT) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + |
8U5T-14474-BB |
| 16 |
VMEA9 (BU-GY) |
20 |
CTRL MOD. - REMOTE CD # AUDIO LEFT + |
CD player |
8U5T-14474-BB |
| 17 |
VMEB9 (GN-WH) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER 2 + |
CD player |
8U5T-14474-BB |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
VDB29 (GN-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH |
8U5T-14474-BB |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
RME06 (GY-YE) |
20 |
CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP - |
8U5T-14474-BB |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
RMM23 (WH-GN) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - |
8U5T-14474-BB |
| 27 |
RMEA9 (VT-BN) |
20 |
CTRL MOD. - REMOTE CD # AUDIO LEFT - |
CD player |
8U5T-14474-BB |
| 28 |
RMEB9 (WH-BN) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER 2 - |
CD player |
8U5T-14474-BB |
| 29 |
VMC49 (VT-GY) |
22 |
CTRL MOD. - INTEGRATED CONTROL PANEL LIN BUS |
8U5T-14474-BB |
| 30 |
VDB30 (WH-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW |
8U5T-14474-BB |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
