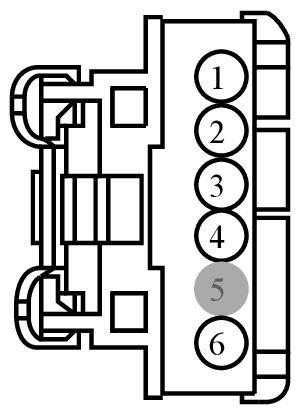

Connector End View (C236) - PANEL/FLOOR MODE DOOR ACTUATOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C236 | PANEL/FLOOR MODE DOOR ACTUATOR | BK | 14401 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| FU5T-14474-LB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CH202 (BU-GN) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS) | FU5T-14474-LB | ||||
| 2 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | FU5T-14474-LB | ||||
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS | FU5T-14474-LB | ||||
| 4 | VH436 (YE-VT) | 22 | SENSOR - DOOR POSITION DEFROST | FU5T-14474-LB | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | CH203 (GN-BN) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS) | FU5T-14474-LB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1419
Service Part Number:
FU2Z-14S411-KA
Gauge:
20
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Motor - Heater A/C Mode Door
- Motor - Heater/AC Blend Door
- Motor - Heater/AC Inlet Door
